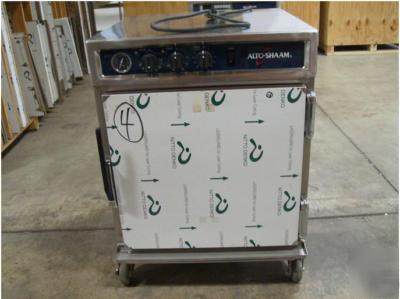

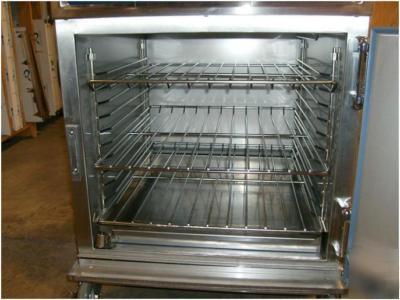

II LOW TEMPERATURE COOK & HOLD OVEN Single compartment oven with 20 gauge, non-magnetic stainless steel exterior and door with magnetic door latch. Oven is equipped with two (2) stainless steel side racks with eleven (11) pan positions spaced on 1-3/8" (35mm) centers, three (3) stainless steel wire shelves, one (1) stainless steel drip pan with drain, and one (1) external drip tray. Oven includes one (1) set of 3-1/2" (89mm) casters 2 rigid, and 2 swivel with brake. Oven control features an ON/OFF switch; one (1) cook thermostat, 100 to 325 F (38 to 163 C); one (1) hold thermostat 60 to 200 F (16 to 93 C); and one (1) twelve-hour timer. Control includes one (1) cooking indicator light and one (1) holding indicator light. Each oven is equipped with a voltage conversion switch, located on the back of the oven, for voltage selection (208 to 240 V.A.C.) at time of installation. MODEL 750-TH-II: Low temperature cook & hold oven with manual control. Pass-th ro ugh o ve ns canno t h ave all d o o rs h inge d Right-hand door with window. [15433R] Left-hand door with window. [15732R] 750-TH-II with 750-TH-II, 750-TH/III, 750-S Holding Cabinet, 767-SK, or 767-SK/III Cook/Hold/Smoker. Order appropriate HALO HEAT . . . a controlled, uniform heat source that maintains close temperature tolerances throughout the cooking and holding function. Offers uniform and consistent cooking on a daily basis, low shrinkage of bulk or portion-cut protein items, higher food moisture content, and significantly longer holding life. Cooks, roasts, re-heats, and holds in the same cabinet with set-and-forget controls to provide a better distribution of work loads. Cooks by time and automatically converts from cook mode to hold mode. Oven hoods, outside venting, and fire extinguisher systems are not (IN MOST AREAS). Emission of grease laden air are less than U.L. Stackable design for additional capacity. Ten (10) 20" x 12" x 2-1/2" (530mm x 325mm x 65mm) Six (6) 20" x 12" x 4" (530mm x 325mm x 100mm) Four (4) 20" x 12" x 6" (530mm x 325mm x 150mm) up to Five (5)* 18" x 26" x 1" *31-13/16" (807mm) - with optional 2-1/2" casters *35-1/4" (894mm) - with optional 5" casters *34-7/16" (874mm) - with optional 6" legs 79" (2006mm) Pass-Through Design Bumper, Full Perimeter 5010371 Drip Pan with Drain, 1-11/16" (43mm) deep 14831 Legs, 6" (152mm), Stemmed (SET OF FOUR) 5011149 Pan Grid, Wire 18" X 26" PAN INSERT PN-2115 Security Panel w/ Key Lock 5004750 Shelf, Stainless Steel, Flat Wire, REACH-IN SH-2324 Shelf, Stainless Steel, Flat Wire, PASS-THROUGH SH-2327 Shelf, Stainless Steel, Rib Rack SH-2743 Appliances with casters and no cord or plug must be secured to the building structure with a flexible X 35"X 41" (889mm x 889mm x 1041mm) 3-inches (76mm) at the back, 2-inches (51mm) at the top, and 1-inch (25mm) at both sides (Alto-shaam 750-th/ii 120V was posted and is owned by: Jo Richard) |
