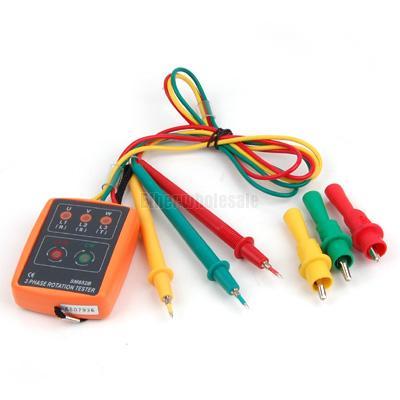

3 Phase Sequence Rotation Indicator Tester Meter Tool [Reference: CE000808045] This SM-852B phase indicator is designed for checking the presence of open phrase and prase sequence through the designated LEDs and an audible buzzer sound at the same time. * Check the presence of open phase and identify 3 phase sequence condition * Efficient, effective, reliable, easy and safe to use * One Unit with 2 Functions: Open phase indication & Phase rotation indication * Indicate phase orientation (clockwise or counter-clockwise) and whether each of three phases is live * With indications via LEDs and audible buzzer sound at the same time * Ensure the object being tested is not damaged from incorrect wiring * Portable, compact design and meet the electrical safety standards IEC-348 * Operation Voltage: 60V - 600V AC, three phase * Limit Support Voltage: 2000 V/min(impulse voltage 4000V) * Operating Frequency Range: 20 Hz - 400 Hz * Limit Time for Continuous Use: 60 minutes maximum at 60V AC, 4 minutes maximum at 600V AC * Test Leads: Double insulation * Length of Test Leads: Approx. 80cm long * Item Dimension: Approx. 85 x 64 x 23mm * 1x Main unit with test leads * 1x Instruction manual (english) * 1x Zippered blue carrying case (3 phase sequence rotation indicator tester meter tool was posted and is owned by: Victor Rivers) |
