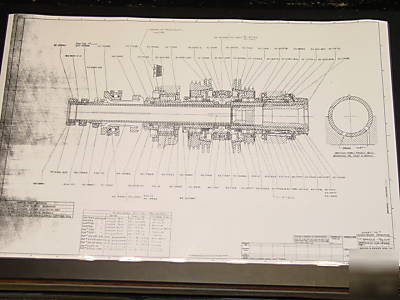

1-5/8 Spindle Assembly Print, Brown & Sharpe For a No. 2 Brown & Sharpe Cam Driven Ultramatic Screw Machine This is a laminated copy of the original Brown & Sharpe mechanical drawing used to assemble a 1-5/8 capacity screw machine spindle. It shows each component of the spindle mechanism and calls out the part number. * Each drawing is a beautiful example of the draftsman s art. * This is a must if you operate or repair a Brown & Sharpe with a 1-5/8 spindle. * This drawing was used to assemble the spindles in Brown & Sharpe Ultramatics with serial numbers from 542-2-5601 to 542-2-7574. * It will simplify ordering replacement parts. * The poster is 24 by 41 inches and suitable for hanging in your work space or it could be framed and hung in your office. If you are interested, need addition equipment, or have questions, please feel free to email us at K_hinton@chicagopartsnetwork.com or call us at ((***)-753-3345 or (***)-349-5665) If you interested in this item, be sure to check our store. We sell repair parts and accessories for Brown & Sharpe and most other brands of automatics (Print of a 1-5/8†spindle assembly, brown & sharpe was posted and is owned by: Kristy Hinton) |
K_hinton@chicagopartsnetwork.com (Kristy Hinton) for more information.
