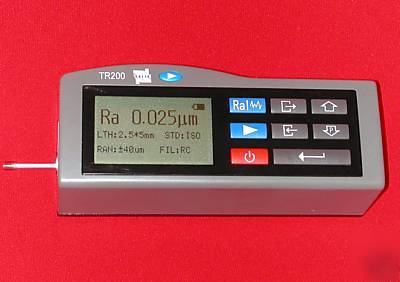

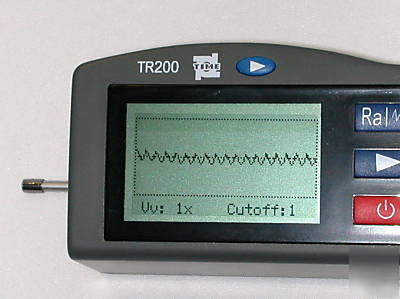

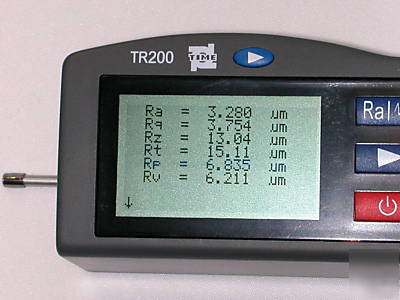

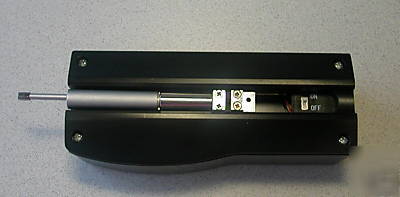

Multi parameters display function User selects Micron or Microinch unit Roughness parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rm, R3z, S, Sm, Sk, tp Measures flat, outer cylinder and sloping surfaces Measures grooves and recessions: wider than 0.16in (4mm) Measures curved surfaces: radius > 45mm(TS100) Assess profiles: primary profile (P), roughness profile (R), tp curve (material ratio Mr) Display resolutions: 0.001 m / 0.04 inch Display languages: English, German, French, Italian, Spanish, Dutch Maximum drive range: 0.7in(17.5mm) Cut-off length: 0.009 / 0.03 / 0.09inch (0.25 / 0.8 / 2.5mm) Sensor-stylus: Diamond, radius 5 m Filter: RC, PC-RC,GAUSSIAN,D-P Removable micro printer: can be installed Operating temperature: 41 F-104 F (5 -40 C) Dimensions: 5.6 2.2 1.9inch (141 56 48mm) Power: Li-Ion rechargeable battery Rz,Ry,Rp,Rt,R3z, Rm: 0.02 - 160 m speed 1mm/s (sampling length 2.5mm) speed 0.5mm/s (sampling length 0.8mm), speed 0.135mm/s (sampling length 0.25mm) Software is not included but available for purchase. Many optional accessories are not included but available for purchase as well. The package / set comes with the following standard accessories: 1 Sensor (detector, stylus)- TS100 (High accuracy TR200 portable surface roughness tester was posted and is owned by: Kevin Snyder) |
Kevin.snyder@chicagopartsnetwork.com (Kevin Snyder) for more information.
