Agilent N5230A network analyzer, 300 khz - 13.5 ghz


Agilent N5230A network analyzer, 300 khz - 13.5 ghz

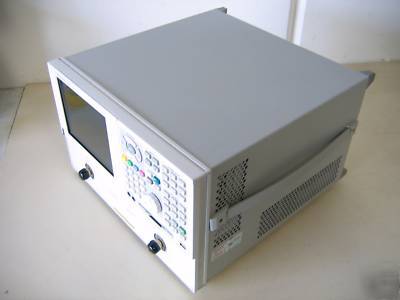

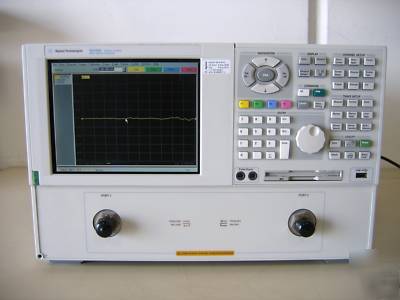

Agilent N5230A Network Analyzer, 300 kHz - 13.5 GHz w/ Option 120
The Agilent N5230A Network Analyzer provides a superior combination of speed and accuracy for measuring multi-port and balanced components such as filters, duplexers and RF modules up to 50 GHz (option dependent). The Agilent N5230A analyzer's automatic port extension feature automatically measures and corrects for fixtures, making measurements of in-fixture devices simple and accurate. The configurable test set (optional) provides access to the signal path between the internal source and the analyzer's test ports. This option provides the capability to improve instrument sensitivity for measuring low level signals, to reverse the directional coupler to achieve even more dynamic range or to add components or other peripheral instruments for a variety of applications such as high-power measurements. The extended power range (optional) adds a 60 dB step attenuator internally to the RF source path. The attenuator extends the source output power range to over 80 dB, allowing for maximum flexibility when stimulating the device under test.
Features of the Agilent N5230A PNA include:
* Models from 300 kHz up to 50 GHz (option dependent)
* Fast measurements <9 usec/point measurement speed, 32 channels, 16,001 points
* Low trace noise as low as 0.004 dB rms at 1 kHz bandwidth
* High dynamic range up to 108 dB at 20 GHz
* 108 dB of dynamic range and <0.006 dB trace noise
* TRL/LRM calibration, on-wafer, in-fixture, and waveguide measurements
This Agilent N5230A includes option 120: 10 MHz - 13.5 GHz, 2-Port Test Set
This Agilent N5230A is available for RENTAL - Call (***) 806-6600 to RENT this item
