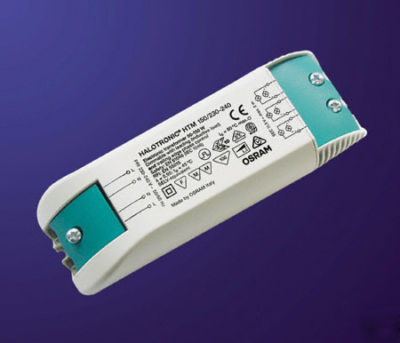

OSRAM Electric Transformer halogen lamp HTM 150/220-240 Output voltage 11.4 V (150 W) | 11.5 V (50 W) Max. no. of ECGs on circuit breaker 10A 16 Max. no. of ECGs on circuit breaker 16A 26 Mounting hole spacing, length 146 mm Wire preparation length, output side cable sheath 12 mm, wire 8 mm Wire preparation length, input side cable sheath 12 mm, wire 8 mm Max. cable length - system in meters 2 m Max. casing temp. in case of fault 110 C Max. operating temp. at the Tc point 80 C Ambient temperature range 0 ... +45 C Storage temperature -40 ... 85 C Relative humidity 5 ... 85 % 2) Remark: COLOR MAY SLIGHTLY VARY FROM ORIGINAL PICTURE. PLEASE KINDLY UNDERSTAND. ~Delivery Time : 7 - 14 business days normally but may be sometimes about 24 business days for some countries. Our Ref. G500/HD184/PM150/OP13 (Osram electric transformer halogen lamp htm 150/220-240 was posted and is owned by: Jody Ward) |
j_ward@chicagopartsnetwork.com (Jody Ward)
for more information.
