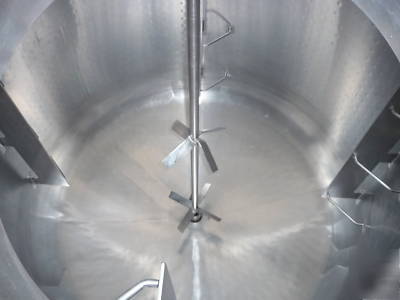

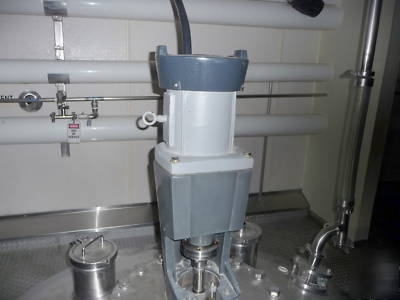

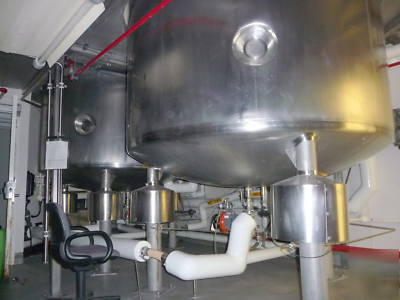

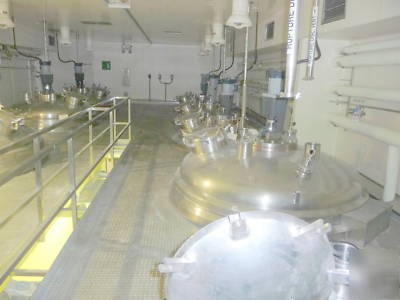

Mueller 1500 Gallon 316 Stainless Jacketed Tanks * All tanks have top mount agitators and load cells on base legs * 89 1/2" Dia. x 51" Straight Side * Interior Baffles 1/4" Thick x 7" Wide x 51" Long * Temp-Plate: 14 Ga. 304 on 5/16" 316L & 3/8" 316L * Heads: Top and Inner Bottom 3/8" 316L ASME F&D, Outer Bottom 12 Ga. 304 F&D * Insulation: 2" Kode 25 Urethane * Design Temp: 300 Temp-Plate / 300 Vessel * Design Vacuu IN. HG.: 0 Temp Plate / 29.92 Vessel * Hydrostatic Test PSIG: 128 Temp-Plate / 75 Vessel 5 Available Priced individually Tanks are very clean and in excellent conditon. Currently installed at pharmaceutical plant in Los Angeles, CA. Upon request, can schedule appt. to view. (Mueller 1500 gal. 316L stainless jacketed tank was posted and is owned by: Ines Chang) |
i.chang@chicagopartsnetwork.com (Ines Chang) for more information.
