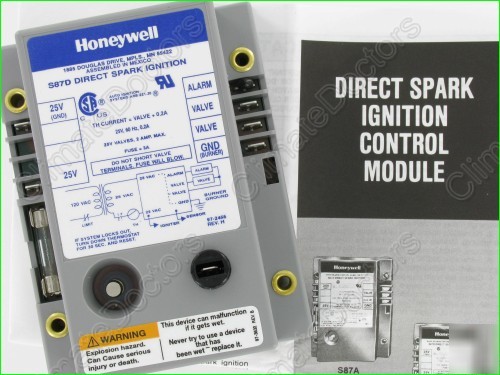

Honeywell S87D1004 Direct Spark Iginition Control Honeywell S87D1004 Direct Spark Ignition Control Two Rod Direct Spark Ignition Control with 6 second trial time and 6 second lock out timing. Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliances. * Control ignition sequence and gas control operation. * Generate high voltage potential for main burner ignition. * Lockout after one trial for ignition if main burner fails to ignite. * Reset from thermostat after lockout. * Use modules (except S87C) with any combination gas control designed for direct spark applications and rated 2.0A or less. Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances. Single trial for main burner ignition (then shut down and lockout) 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long 133 mm high x 103 mm wide x 49 mm deep Flame Failure Re-ignition Time (sec) (Honeywell S87D1004 direct spark iginition control was posted and is owned by: Kellie Holloway) |
