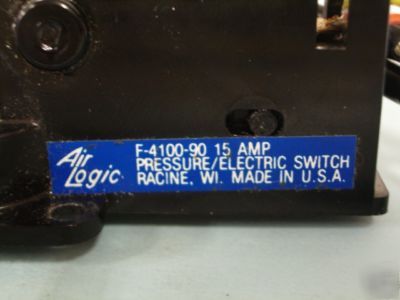

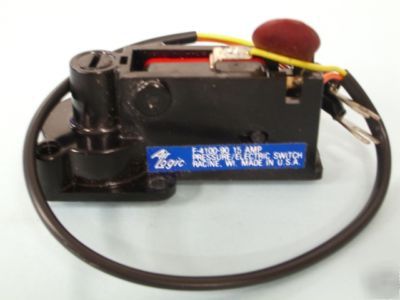

EPI Reactor On/Off Fluidic Switch F-4100-90 is preset at 15" H2O. The switches have three electrical terminals: Normally Open, Normally Closed and Common. Switches are provided with a B80 Barb, 10-32 UNF Barbed Fitting, for 1/16" I.D. tubing unless otherwise requested. Switch Action: Single pole, double throw Electrical Rating: 0.1, 5, or 15 AMP, 125 or 250 Volt AC Electrical Switch: UL and CSA Approved Electrical Connections: .187" quick-connect terminal Operating Speed: 25 milliseconds Temperature Limits: 40 degrees to 120 degrees F. (4 degrees to 49 degrees C.) Flush Mount: Mounting hole has a diameter of .149"; use No. 6-32 screw (Epi reactor mini pressure switch airlogic f-4100-90 was posted and is owned by: Lindsay Wallace) |
