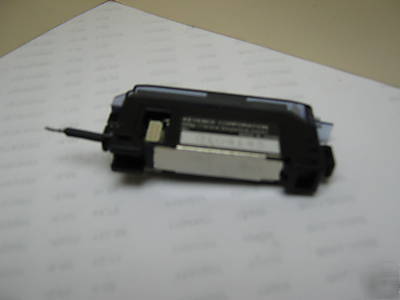

KEYENCE FS-T2 FIBEROPTIC SENSOR AMPLIFIER Response time : 250 s 410 s to 1 ms (1) Operation mode : LIGHT-ON/DARK-ON (switch-selectable) Timer function : ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch selectable) Control output : NPN or PNP:100 mA max. (40 V max.) Residual voltage : 1 V max. (2) Power supply : 12 to 24VDC 10% (3) Ambient light Incandescent lamp : 10,000 lux max. Sunlight: 20,000 lux max. Ambient temperature : -10 C to +55 C (14 to 131 F), No condensation Relative humidity : 35 to 85%, No condensation THESE UNITS HAVE HAVE HAD THE SINGLE WIRE ELECTRICAL CONNECTION CUT, BUT THEY CAN BE EASILY REPLACED ( keyence fs-T2 fiberoptic sensor amplifier was posted and is owned by: Leticia Barnes) |
leticia.barnes@chicagopartsnetwork.com (Leticia Barnes) for more information.
