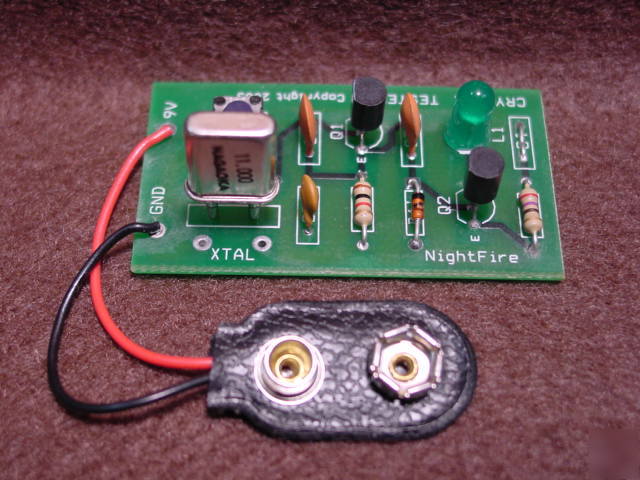

Crystal Tester Project Kit with PCB (#1715) This Crystal Tester (Thru-Hole) Project Kit is very popular and easy to build. It will light up the Green LED whenever a good crystal is tested. It has been tested with crystals from 1MHz to 80MHz. It comes with a crystal socket to test various crystal frequencies and it also has the crystal connections available as outputs so that you can wire up your own crystal holder. It has a pushbutton to start the circuit so that there is not a constant battey drain. You get the PCB, Schematics, Electronic component parts, and some crystals to experiment with. It requires a 9 volt battery which is not included. The PCB is 0.062" thick and double-sided with soldermask on both sides. NightFire Crystal Tester, 1.13" x 2.00" Crystal Tester and Bill of Material BC338, NPN, General Purpose Amplifier, TO-92 2N3904, NPN, General Purpose Amplfier, TO-92 1N4148, Silicon, Signal, Axial 27 ohms, 1/4 Watt, 5%, carbon Film 20K, 1/4 Watt, 5%, carbon Film Momentary, PCB ap-Type, 2 wires, 4" leads 9 Volt Snap-Type, 2 wires, 4" leads This is the place to get all of your SMT and Thru-Hole Electronic components!! You will find much more of the great kits with great low prices! Our categories now include: LM380 Audio Power Amplifier Design Kit with Speaker & PCB LM386 Low-Voltage Audio Amplifier Design Kit Aluminum Electrolytic Capacitor (Radial Only) Kit #1 Aluminum Electrolytic Capacitor (Axial Only) Kit #1 Analog IC DIP-Only Design Kit #1 LM555 Timer DIP IC Design Kit with Proto-PCB LM741 Op Amp DIP IC Design Kit with PCB TL071 High-Speed JFET Op Amp SMT IC Design Kit Adjustable Positive Power Supply Project Kit LM317T 3-Terminal Var. Voltage Regulator Kit Crystal Tester Project Kit with PCB (Crystal tester project kit with pcb (#1715) was posted and is owned by: Marianne Walton) |
