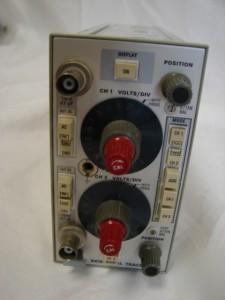

Tektronix 7B53A Dual Time Base Main Trigger Amplifier Tektronix 5A18N Dual Trace Amplifier Plug-In for 5000 The 5A18N Two-Channel Amplifier Plug-in is for use in 5100-series scopes. The unit delivers bandwidth of dc to 2MHz at sensitivities to 1mV/div. To provide difference measurements of two signals in the ADD mode, simply invert the Channel 2 signal. You can select the internal trigger signal from either Channel 1 or Channel 2. For dual-trace X-Y operation, just plug the amplifier into the right plug-in compartment. *THIS ITEM IS USED/PULLED FROM WORKING* (Tektronix 5A18N dual time base main trigger amplifier was posted and is owned by: Reginald Riddle) |
