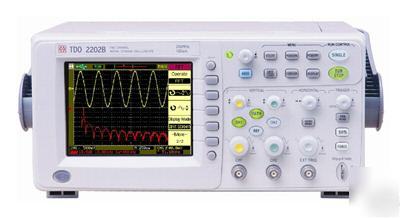

New Portable 100HMZ, 1GHz sample rate Digital Storage Oscilloscope General info for the series Oscilloscope: acquisitions Signal bandwidth: 25MHz/40MHz/60MHz/100MHz/200MHz Real-time sampling rate: Max. 200Msps/400Msps/1Gsps Equivalent sampling rate: Max. 20Gsps/40Gsps/50Gsps 5.7-inch color LCD display, multi-color interfaces available 4k (series A) or 5k (series B) of waveform memory per channel Individual adjustment of attenuation and displacement for each channel Advanced triggering functions, including edge, pulse width and line-selectable video Alternating trigger function available to stably display asynchronous phase signal Math functions including add, subtract, multiply and 2048-dot FFT Max. 24 parameters automatic measurements Advanced cursor modes: manual, auto and track Low-pass, high-pass, band-pass and band-reject digital filters available, corresponding cutoff frequency set Waveform record, and PASS/FASIL output Built-in 5-digit hardware counter Real-time clock (not for TDO1022A, TDO1042AE) Internal 10 setup and waveform memories, external storage of setup, waveform, BMP bitmap and CSV file Standard USB Host interface, supporting USB disk storage and USB printer PRINT key pressed to print screen Standard USB Device interface (not for TDO1022A, TDO1042AE) Multi flexible and selectable expanding function modes: PASS/FAIL+RS232+GPIB, PASS/FAIL+RS232 Bulky storage to store accessories TDO1000/2000 series digital storage oscilloscope offers you a new way of signal detection with excellent performance and strong functions. The series provide 14 models with bandwidths ranging from 25MHz to 200MHz. Even as a diffusive product with middle or low cost, it still provides some measurement functions of middle or top-grade product, and you can meet measurement requirement with affordable cost. The series respectively provide real-time sample rate of 200Msps, 400Msps and 1Gsps and equivalent sample rate of 20Gsps, 40Gsps and 50Gsps, to guarantee accurate observation signal. Many configured advanced characteristics make the measurement more convenient and quickly, such as multi trigger modes, auto measurement, digital filtering, waveform storage, math function, FFT, PASS/FAIL judgment, multi communication interfaces, etc Sample, peak detect, averaging To automatically adjust vertical plus (V/div), horizontal time base (s/div), trigger mode is AUTO 2 analog input channel, 1 outer trigger input channel 2mV/div, 5mV/div 4% reading 0.1div V/div+0.5mV; 10mV/div 5V/div 3% reading 0.1div V/div+1mV; Time base range (1-2.5-5 step) Maximum, minimum, peak-to-peak, top, base, amplitude, average, RMS, overshoot, preshoot Frequency, period, period average, period RMS, rise time, fall time, +width, -width, +duty cycle, -duty cycle, delay, phase, X@MAX, X @MIN 5-digit, counting reaching bandwidth Setup, waveform, BMP bitmap, CSV file, communication file having the characteristics of date and time USB HOST (supporting single key pressed to print), USB DEVICE RS232C+PASS/FAIL OUT, GPIB+RS232C+PASS/FAIL OUT(Optional) STN LCD display, diagonal 145cm(5.7-inch) TDO2000 series: 256 VGA TDO1000 series: black-white Simplified Chinese, traditional Chinese, English Ambient temperature & humidity TDO-XXX oscilloscope probe (XXX indicating bandwidth) 2 TDO-comsoft01 connection software TDO-intex01 expanding interface (RS232C+PASS/FAIL) TDO-intex01 expanding interface (GPIB+RS232C+PASS/FAIL) Click here to download the English Manual: http:// /New_products_info/Datasheet/tonghui/TDO1000-2000_U306.pdf (New portabledigital storage oscilloscope 200MHZ TDO2202B was posted and is owned by: Betty Wiley) |
Betty_Wiley@chicagopartsnetwork.com (Betty Wiley) for more information.
