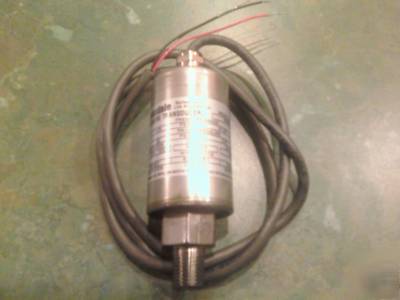

Explosion Proof Transducer (Amplified) Diffused silicon sensor for high accuracy Explosion proof enclosure for hazardous locations Superior EMI, ESD and RFI protection Rugged stainless steel construction Built-in high pressure snubber (2000 psi and above) Coal and oil fired power plants Typical Life Cycle: 100 million cycles Proof Pressure: 2X rated pressure or 13,000 psi Input: Excitation voltage: 12 to 28 VDC Supply Current: 15 mA maximum (no load) Wetted Parts: 300 & 17-4 PH series stainless steel Enclosure: NEMA 4X, 7 & 9, 300 series Pressure Connection: 1/4-18 NPT male (standard) Electrical Connection: 1/2-14 NPT male conduit (w/3 conductor, 24 AWG, 3 foot, PVC jacketed & shielded cable). -40 F to +185 F (-40 C to +85 C) 0 F to +160 F (-18 C to +71 C) 0.0125% per F over compensated Vibration: 15 g s, 10-2000 Hz, MIL-STD 202 Shock: 50 g s, 11 ms, MIL-STD 202 Method Built-in Protection: Conducted & radiated RF emissions/ EN/IEC 6100-4-2, -3, -4, -5, -6 Refer to engineering drawing for details. 7.4 oz. (210 grams) to 1,000 psi 9.4 oz. (266 grams) 2,000 psi and higher (New barksdale pressure transducer 425H3-01 0-15PSI 4-20 was posted and is owned by: Alta Humphrey) |
