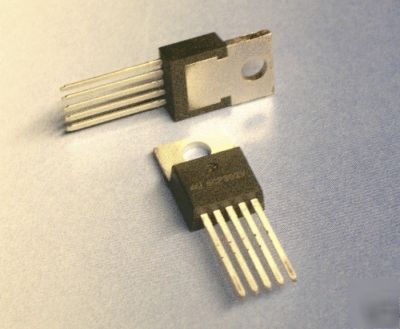

Qty: 2 LM/UC2577 -T-ADJ 5 pin TO220 STEP-UP Adjustable Switching Regulator 54KHz operation - High efficiency The UC2577-ADJ device provides all the active functions necessary to implement step-up (boost), flyback, and forward converter switching regulators. Requiring only a few components, these simple regulators efficiently provide up to 60V as a step-up regulator, and even higher voltages as a flyback or forward converter regulator. The UC2577-ADJ features a wide input voltage range of 3.0V to 40V and an adjustable output voltage. An on-chip 3.0A NPN switch is included with undervoltage lockout, thermal protection circuitry, and current limiting, as well as soft start mode operation to reduce current during startup. Other features include a 52kHz fixed frequency on-chip oscillator with no external components and current mode control for better line and load regulation. (LM2577 step-up 3A integrated switching regulator ic (X2 was posted and is owned by: Elmer Delacruz) |
Elmer-delacruz@chicagopartsnetwork.com (Elmer Delacruz) for more information.
