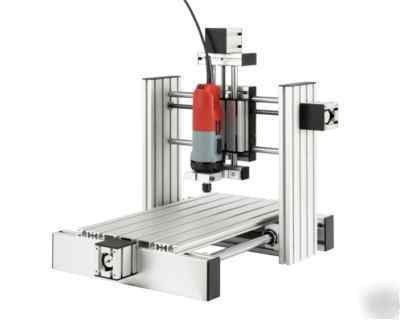

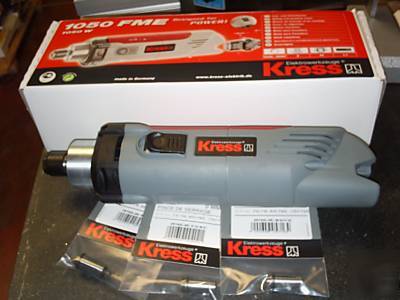

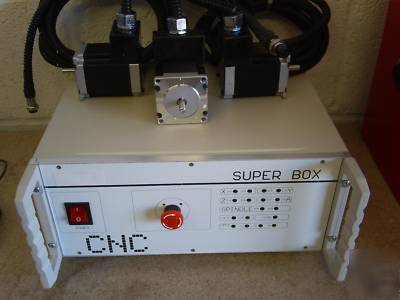

Everything to begin machining! just plug in to your home PC via the printer port New Desktop CNC Machine MDL-2-BSX Router (All 3 Axis Ballscrews) 3 axis SBOX light Industrial controller + Software (Mach3) + Kress 1050 FME + 3 Collets (1/8", 1/4" and 5/16") Manufactured in the UK by Marchant Dice Ltd (worldofcnc) We can offer to manufacture machines to suit your application..Driven by Ballscrew, Trapezoidal, Rack and Pinion or toothed Belt, Stepper or Servo Motor, Round or Square Rails......4th Axis.... Roughing: http:// /user/worldofcnc#play/all/uploads-all/1/Fx1Y7nVLTzA Finishing: http:// /user/worldofcnc#play/all/uploads-all/0/MUpfb654wF8 3 Axis Controller and stepper motors. * Parallel port to the PCB break out box with all connection marked. * 3 axis modular High current design Driver 38V x 3.5A, (optional 4 axis, + ) * 4 x motor output connector + 1 x Aux connection cable connector * 350W ( 27V x 13A) switch mode high power supply * Special made dust free, splash proof Din connector with seal cap. * Selectable micro-stepping, 2,4,8,16,32,64,128,5,10,20,25,40,50,100,125 * Selectable current: 1.3A,16.A,1.9A, 2.2A, 2.5A, 2.9A, 3.2A, 3.5A * All break out board and driver connection is Terminal block style. Easy * modification and wiring, schematic included. * High current switch mode power supply. * Dual dust filtered driver cooling fan * Front panel reset/emergency stop switch * Quality Compact Aluminum chassis, with bench feet. * All driver sinput are opto-isolated to the computer. * 28V/3.5A, 1.8 Deg 192Oz/in torque high power dual shaft stepping motor. * Custom splash/dust proof din connector. MACH 3 supplied as a license key by email.... * Converts a standard PC to a fully featured, 6-axis CNC controller * Allows direct import of DXF, BMP, JPG, and HPGL files through LazyCam * Generates Gcode via LazyCam, Corel Draw or Wizards * Fully customizable interface * Customizable M-Codes and Macros using VBscript Clamping jaw / Collet: 1 to 10mm (8mm (5/16") 3.175 (1/8") 6.35 (1/4")included with this offer) Working area: (A4) XYZ Axis: 330x230x50mm (13"x9"x2") Translation - Ballscrew x pitch (pitch / 1 revolution = 4mm axis movement) X Axis: 12x4mm assembled with zero backlash ballnut Y Axis: 12x4mm assembled with zero backlash ballnut Z Axis: 12x4mm assembled with zero backlash ballnut All 3 ballscrew spindles are assembled into radial flange bearings. Guide Rails - Precision Ground Shafting X Axis: x4pcs LM20UU linear bearing assembled into an SC20V housing Y and Z Axis: LM16UU linear bearings Frame and Bed Rlate: Manufactured from: Aluminium...T-Nut Bed Plate: 500mmx270mm19mm Spindle Mount 43mm for Kress 1050, 800 or 530 Similar Machine: 1 2 3 4 5 6 7 8 9 10 11 13 14 15 16 17 18 19 20 21 Technical Information: http:// /images/MDL-Machines-Router.pdf Forum.....www. Marchant Dice Ltd / Forum (Kit desktop cnc machine engraving milling router was posted and is owned by: Enid Newman) |
enewman@chicagopartsnetwork.com (Enid Newman) for more information.
