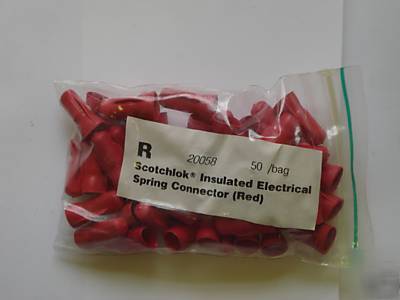

3M SCOTCHLOK R (RED) ELECTRICAL SPRING CONNECTOR **APPLICATION: USE A SCOTCHLOK CONNECTOR R TO ELECTRICALLY CONNECT TWO OR MORE CONDUCTOR ENDS IN A PIGTAIL APPLICATION & INSULATE THE CONNECTION, OR INSULATE A SINGLE CONDUCTOR END. THE CONNECTOR IS UL LISTED & CSA CERTIFIED AS APRESSURE CABLE CONNECTOR. THESE CONNECTORS ARE RATED FOR 600 VOLTS MAXIMUM, BUILDING WIRE, 1000 VOLTS MAXIMUM, SIGNS, FIXTURES, & LUMINAIRES. CONNECTORS HAVE A MAXIMUM OPERATING TEMPERATURE OF 105 DEGREES C. **WIRE RANGE: AWG Range: SOLID OR STRANDED COPPER CONDUCTORS ONLY. Number 18 thru number 10 SPRING IS MADE OF SPRING STEEL W/ A CORROSION RESISTANT COATING SHELL IS MADE OF STEEL W/ A CORROSION RESISTANT COATING INSULATOR IS A FLAME RETARDANT FLEXIBLE POLYVINYL CHLORIDE, COLOR: RED Please also see FIXED SPRING WIRE CONNECTOR HI-2 22-14A (3M scotchlok connector r (red) (bag of 50) was posted and is owned by: Alfreda Floyd) |
alfredafloyd@chicagopartsnetwork.com (Alfreda Floyd) for more information.
