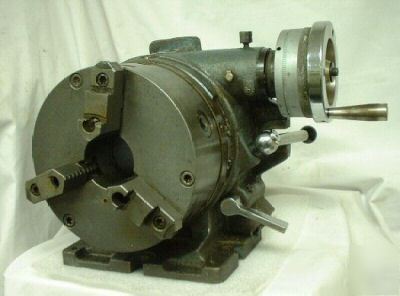

Welcome to Select Machine Tool YUSA SUPER ACCU-DEX ROTARY TABLE The super accu-dex combines the advantages of the accu-dex with those of the worm geared rotary index. Disengaging the worm drive permits accurate quick indexing by the index pin locator into any of the 24-notch positions on the master gear. Rapid positioning to specific index locations is possible when any masking plate position is used. * MODEL 550-008 index w/ 8†accu-chuck® * Worm can be completely disengaged for free rotation * For milling, drilling, jig boring, and many common shop applications * 24 position hardened and ground index plate (15? increments) with satin chrome dial, 360? graduated ring and adjustable 10 second vernier * Unit is equipped with 5 matching plates (2,3,4,8, And 12 divisions) * The three-jaw Accu-Chuck is completely adjustable to within 0.0005†T.I.R. (0.012) * Max individual spacing error 25 seconds * Base to chuck squareness (90?) 0.0008†* MOUNTING FLANGE CONCENTRITY 0.0008†* CHUCK CENTER HOLE DIAMETER 1.73†State sales tax will be added where applicable. FOR ALL OF YOUR AIR, TOOLING, AND MACHINING NEEDS PLEASE VISIT (Super accu-dex 8" worm geared rotary index table was posted and is owned by: Mitchell Keller) |
