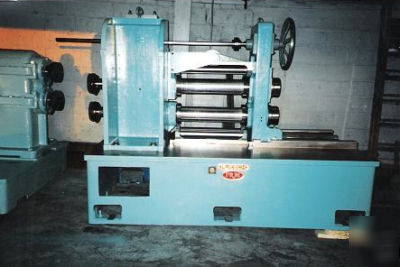

24 WIDE X 6.5 DIAMETER ARBORS Slitter head and drive 125 HP Reliance DC motor 480 volts 850 to 1800 RPM. H.S. reducer with 157 HP rating, 18:07:01 ratio. Arbors driven through couplings. Line speed 0 285 FPM @ 12 knife diameter. Steel ring assembly model # N2241, S/N 5568 Hornburg/Scott pinion stand;157 HP, serv. Factor 1.0 ratio18:07:01 850 RPM input; size 12 - W 29 vertical distance between pinion shafts 12 ; electric clutch. Approximate dimensions: Head 8.5 L x 4 W x 6.5 H Approximate Weight: Head 15,000 Lbs Tooling: 96 pcs. 12 dia x .500 knives; 194 pcs spacers of various sizes, or we can quote a line to your specifications on request. (Ruesch #177 24" wide x 6.5" diameter arbor ring slitter was posted and is owned by: Bertha Patton) |
BerthaPatton@chicagopartsnetwork.com (Bertha Patton) for more information.
