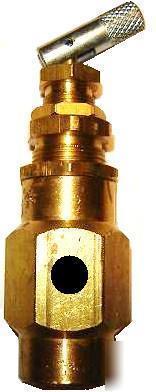

Precision manufactured pilot valve adjustable for both pressure and differential. The PV1418 offers a solid brass body, stainless steel spring and ball, and stainless filter. Pull Ring or Lifting Level is optional, and offers manual unloading. Field Adjustable. Single or Double Port. 300 F and 200 PSI Max. Unloader pilot valves are used in compressed air systems to actuate another device using a pneumatic (air) signal. Unloader pilot valves always work in conjunction with another device. * Actuating a throttle control to slow down and speed up an engine. * Opening and closing a discharge valve to vent air to atmosphere. * Operating the intake unloaders in the compressor's head. Pilot valves operate in a set pressure range. The range has an unload setting and a load setting. As a compressor operates in this range, it is said to by cycling. At the unload setting, the pilot valve opens and actuates another device (throttle control, discharge valve). At the load setting, the pilot valve closes and returns the compressor to normal operation. (New unloader valve for air compressor 95-125 pv was posted and is owned by: Harvey Brennan) |
h_brennan@chicagopartsnetwork.com (Harvey Brennan) for more information.
