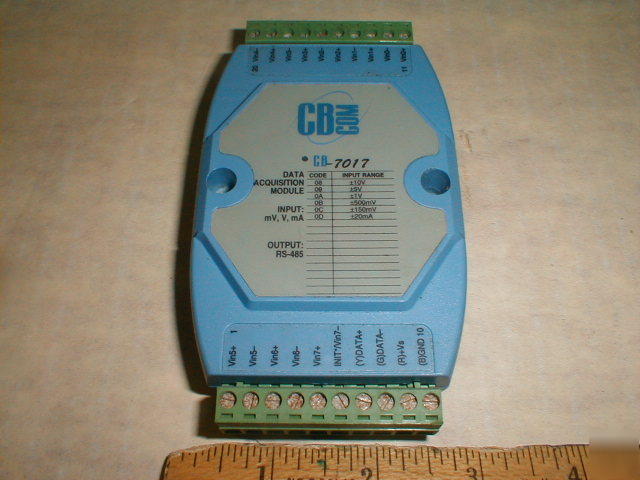

CB-7017 Isolated 8 Channel Analog Input Module * Channels: 6 differential + 2 single-ended or 8 differential (jumper select) * Input range: 150mV, 500mV, 1V, 5V, 10V and 20mA * Sample rate: 10 sample/sec(total) * Accuracy: 0.1% or better * CMR @ 50/60 Hz: 92 dB min * Over voltage protection: 35V * Isolation voltage: 3000Vdc min * Serial data rate: 1200, 2400, 4800,9600, 19200, 38400, 57600, 115200 * Power required: +10 to +30V * Operating temp: 14 F to 158 F * Storage temperature: -13 F to 185 F * Humidity: 5 to 95%, non-condensing to see the data sheet on this module. Removed from a really expensive piece of prototype military equipment. Untested, sold with a 10 day no DOA warranty. (Isolated 14 channel digital input module RS485 data out was posted and is owned by: Cheryl Daugherty) |
cheryl-daugherty@chicagopartsnetwork.com (Cheryl Daugherty)
for more information.
