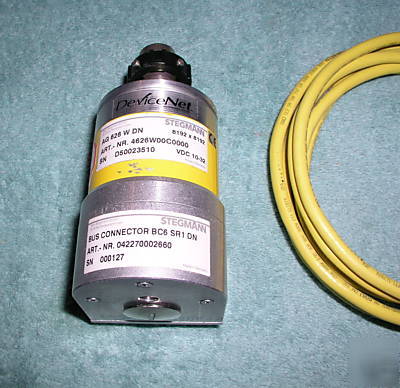

* This is an older (2005) P/N for the ATM60-D DeviceNet Multi-Turn Absolute Encoder-There are no differences between the two according to the manufacturer. * Encoder is Art.-NR. 4626W00C0000 with Bus Connector BC6 SR1 DN (Art.-NR. 042270002660) * Rugged magnetic pick-up system * 26 -bit rotary multiturn absolute encoder * Basic resolution 8192 steps per turn, 8192 turns * Bus coupling CAN high speed (ISO 11898) * DC isolation of the bus interface via optocouplers * DeviceNet Specification Release 2.0 * IP 67 with shaft sealing ring, IP43 without shaft sealing ring, not sealed at encoder flange, IP 66 without shaft sealing ring, sealed at the encoder flange. * High shock and vibration resistance * Integral Two-Color LED to indicate Network Status * The AG 626 DN absolute angle encoders have an overall resolution of 26 bits. The * resolution per turn is 13 bits, the number of turns is also 13 bits. The multiturn * information is produced using a geared mechanism and additional encoding stages. * The bus coupler is located in the encoder and is designed in accordance with ISO * 11898 (CAN high speed) and CAN specification 2.0 B. * Operating voltage 10-32 Volt DC * Equipped with Clamping Style Mounting Flange which measures 59.5 mm in diameter (same as body) with three M4 tapped mounting holes on a 48mm B.C., 36 mm centering diameter and 10 mm diameter male shaft. * The encoder is connected by means of a bus connector (bus shroud). This unit is equipped with one 5-Pole Male Micro Style circular connection and two threaded plugs. These came in a lot of new spare parts so they have a few tiny light cosmetic marks on the body, but they are otherwise spotless. The mounting face, coupler & connections are spotless & these are clean. The cables may have some light cosmetic marks/scuffs on the sheath but none go through. The cable connector is unharmed (the other end is unterminated) (Stegmann ag 626 w dn devicenet absolute rotary encoder was posted and is owned by: May Fitzgerald) |
