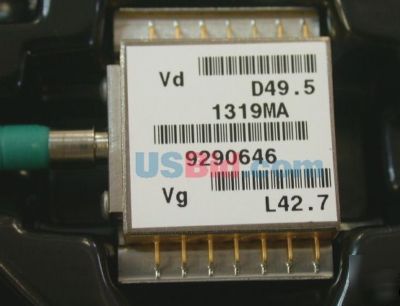

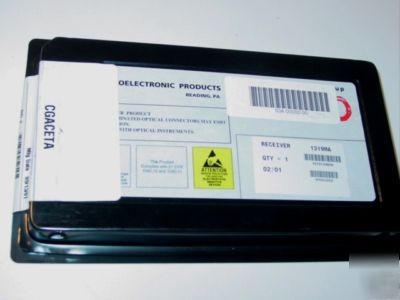

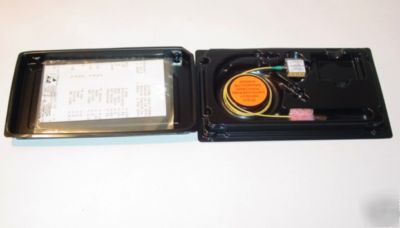

LUCENT 1319-Type 2.5 Gb/s High-Speed Lightwave Receiver Device comes terminated with MU Singlemode connector The 1319-Type high-speed fiber-optic receiver consists of a wideband linear preamp followed by a limiting amplifier buffer stage. It is designed for use in singlemode, high-speed applications at the SONET OC-48 and the ITU-T synchronous digital hierarchy (SDH) STM-16 data rate of 2488.32 Mbits/s. The receiver is an APD photodetector. At 2.5 Gbits/s, the typical room temperature receiver sensitivity measured at 3 x 10 11 bit-error rate is 34 dBm for the APD receiver and 25 dBm for the PIN version of the receiver. The operating case temperature range for the APD receiver is 0 C to 60 C High data rate capability: 2.5 Gbits/s APD photodetector Fully operational through the 1.3 m to 1.55 m wavelength range Typical sensitivity: 34 dBm with APD Single-mode fiber pigtail with MU optical connector High-performance GaAs preamplifier Operating case temperature range: 0 C to 65 C with APD * High-speed networks up to 2.5 Gbits/s * SONET OC-48 and SDH STM-16 telecommunications applications * Extended reach datacomm and telecomm applications NEW IN ORIGINAL PACKAGING - INCLUDES TESTING SPECIFICATIONS http:// /1319MA-datasheet.html (Lucent 1319-type 2.5 gb/s high-speed lightwave receiver was posted and is owned by: Keith Sharp) |
K-sharp@chicagopartsnetwork.com (Keith Sharp)
for more information.
