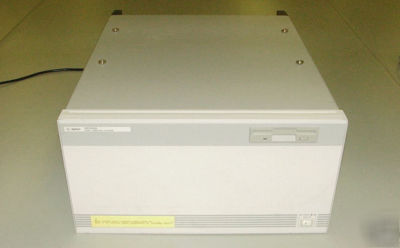

HP AGILENT 16700A LOGIC ANALYZER 3X 16715A MODULES The Agilent 16700A logic analysis mainframe provides comprehensive system-level debugging optimized for multiple processor/bus designs. With an on-screen setup assistant and an intuitive user interface, your design team can finally work together to solve tough hardware/software integration problems. * Hardware developers get: 1020 channels of high-speed logic analysis, 4GSa/s timing, 2 GSa/s oscilloscope functionality, and 200 channels of 200 MHz digital pattern generation - precisely time-correlated. * Software developers get: processor run control, links to popular debuggers, real-time view of source code. * System designers get time-correlated views showing system activity from analog signals to source code. This unit has the following modules installed: * Maximum state clock: 167 MHz * Maximum timing sample rate (full/half channel): 333/667 MHz * Maximum channels on a single time base and trigger: 340 * Maximum channels in a system: 680 * Memory depth (full/half channel): 2/4M * Timers: (2 per module) -1 * Occurrence Counter: One occurrence counter per trigger sequence level * Maximum trigger sequence levels: 16 * Maximum trigger sequence speed: 167 MHz * Trigger sequence level branching: * Number of state clocks/qualifiers: 4 * Setup/hold time: 2.5 ns window adjustable from 4.5/-2.0 ns to -2.0/4.5 ns in 100 ps increments per channel * Threshold range: TTL, ECL, user-definable +/- 6.0 V adjustable in 10-mV increments * 003 = Performance upgrade - 160MB RAM and 2M video RAM (Hp agilent 16700A logic analyzer 3X 16715A modules was posted and is owned by: Mary Michael) |
