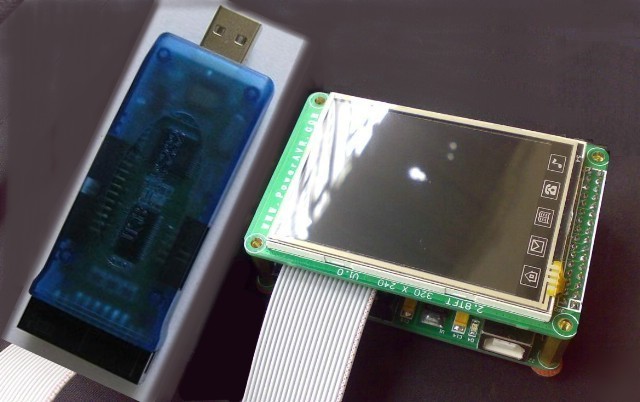

STM32 + touch screen + emulator/debug box KIT INCLUDS : Mini STM32 development board + 2.8" Lcd touch screen (UCOSII + UCGUI)+ emulator/debug (3jtag connection) box. * Based on 32 Cortex-M3 high-performance processor STM32F103C8T6, 128KFlash, 20KRam * Support JLINK, ULINK2, ST-LINK2 and other manufacturers simulator * Support IAR, MDK integrated development environment, ARM MCU emulation and development environment * High-performance hardware design, open source schematic * USB-powered, reliable performance, debugging is simple and convenient * Standard 20 Pin JTAG connection * Communication interface: 1 channel USB, RS232, * System functions: RTC real time clock, battery back-up seat, ISP online programming interface, * Extend functions: ADC input voltage adjustment potentiometer, 2 LED, 2 keys, * USB powered, can be Power On command JLink Command Supply, * 8 Mhz oscillator, on-chip PLL can be doubled to 72 MHz. . maximum working clock 72MHz, * RS232 (ISP download)with serial converter chip SP3232, * Standard ARM JTAG 20 pins block, * ADC input voltage adjustment potentiometer, * Power indicator light, USB status indicator, two user programmable light, * USB-powered or emulator command input power supply power on command, * MHz crystal, 32.768kHz crystal, Sunder Picture Sunder Picture Sunder Picture Sunder Picture Sunder Picture Sunder Picture Sunder Picture Sunder Picture Sunder Picture * 3 JTAG cables : 10pin 2.0mm spacing, 20pin 2.0mm spacing, 20pin 2.54mm spacing, Will send out by EMS with a tracking number, delivery against signature. (STM32 + touch screen + emulator/debug box was posted and is owned by: Mercedes Robertson) |
mercedes_robertson@chicagopartsnetwork.com (Mercedes Robertson) for more information.
