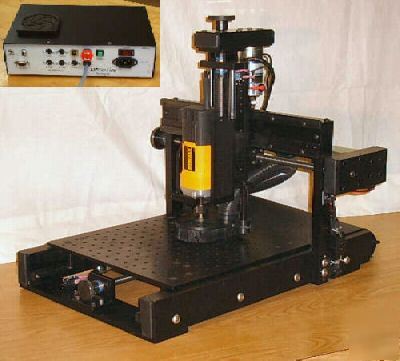

12 x 12 x 4 travels, servo system See this machine running Mach3 and ncPOD at the Cabin Fever Model Engineering Expo. York, PA, January 19-21. cabinfeverexpo.com for details Not a Kit, fully assembled and wired, including servo motor power cables, encoder cables, limit and home switches, and servo controller box. Standard machine has 90 ipm in all axes, High speed option available with 175 ipm on X and Y axes. All metal construction with black anodized aluminum surfaces and hardened steel guide rails. Moving table design provides high reliability and includes precision, 1 inch, tapped hole grid for easy fixturing. Thrust bearings and Acetal anti-backlash nuts Includes fully licensed Cam and Controller software compatible with Windows 98 or later operating system running on your computer with a serial or USB port. Software is fully pre-configured. Install on Windows computer, home machine axes and start to run parts. 4 inches of Z travel and integrated probing software, makes for an excellent surface scanning capability Machine, software, motors and controller are all MADE IN USA 3D surface scan of a quarter, made with a 1mm probe tip on the IMService121204 CNC router. .STL file shown rendered in Vector Cad. Engraving, 60 degree conical bit, approx .030" deep, 50 ipm Material is Engraver's plastic, .06 x 2 x 4 inch: Sheet Routing, 1/8 x 6 x 6 inch, Acrylic Sheet, Spiral up cut, 50 ipm, .06 depth of cut, .030 attachment tabs keep part from coming loose: 25 ipm, no coolant or lubrication. .030 depth of cut. Flat surface is .03" below top of material blank, pocket is .125 deep, and 3 Desktop, Servo CNC router. 12" x 12" x 4" travel. System3A closed loop, control system, 3 axis of motion, limit and home switches. 90 ipm on all axes. Made in USA! Now with 175 ipm optional High Speed option on X and Y. Includes DeskCNC control hardware and software license. Servo CNC router with DeskCNC software Vector Cad-Cam XI w/ JTS also available at a discount. Vector Cad-Cam includes 3D CAD surface design, Jobs-Tools-Simulation and milling/routing. Valued over $1000.00 This is the latest version of Vector Cad-Cam. Also included at no extra charge, Dave Benson's new book "Easy CNC": Easy CNC was written with DeskCNC in mind. It tells step by step how to draw and create G-code programs using DeskCNC. Special Installation of DeskCNC has all settings predetermined. All functions match the machine at startup. This machine is ready to run, it does not require you to adjust any software settings or experiment with steps, or search or beg for 3rd party software support. All wires and cables included. Panel switches and connections include latching E-stop switch, power reset/enable circuit, servo driver reset circuit, panel connector for probe/tool setter, 3 axis encoder connectors, lighted main power breaker. Items included with the machine: * Assembled and tested CNC routing machine ( Base and Bridge ) * Assembled and tested servo controller box * Servo motor power and encoder cables * Licensed DeskCNC software on CD * Set of hex wrenches for assembly * Grounding cable (for static control) * Dewalt DW670 trim router( bracket is included with base machine), $135 * High speed, 175 ipm, X-Y axis $150 * Dust skirt are optional $125 * Dual outlet spindle and AUX relay box $249 Machine is a fixed gantry, moving table design. Z axis is precision Thompson rods with linear ball bearing. Z axis frame is constructed of cast tooling plate to assure precision alignment and reliability. Y and Z axis are constructed with V-groove bearing wheels on hardened steel track. Aluminum parts are all black anodized and steel track is black oxide coated to resist corrosion. No plastic or MDF is used for frame construction, moving surfaces, or table. The machine travels are slightly larger than 12 x 12 x 4 inches. It is designed for cutting wood and plastic. It will also make light cuts in materials such as aluminum and brass. At rest, the motors are roughly equivalent to 270 oz-in steppers. Once in motion they have much better dynamic performance. 90 ipm. The router has 1/4 collet ( 1/8 and 3/16 sleeve adaptors are available at extra cost). Machine resolution is approx 55,000 increments per inch ( 27,000 with high speed option). The system uses the DeskCNC SV-500 servo drives with acme threads on the lead screws. All axes have pre-loaded thrust bearings and anti-backlash nuts with no measurable backlash. Shown with optional items NOT included with base machine: Dewalt Trim Router add $135, Dewalt mounting bracket is included, Hi-Speed X-Y axis add $150, Dust collection system w/ hose, foot and mounting bracket add $125. These items may be purchased for additional cost. Rotary option includes clearance for 3.2 inch diameter ( shown above) x 12 inches long. Rotates at up to 7400 degrees per minute, and positions to .0015 degree, servo encoder resolution. Items included with the rotary axis option: * 4" diameter CNC, servo rotary table, * 3.1 inch diameter, 4 jaw, self centering chuck, * precision right angle mounting plate with t-slot for tailstock and mounting holes to match the router table * 4th servo motor with power and encoder cables * 4th servo driver installed in controller box. * manual hand wheel for precision adjustment of angular position (Desktop servo cnc router with deskcnc cam and control was posted and is owned by: Armando Livingston) |
armando_livingston@chicagopartsnetwork.com (Armando Livingston) for more information.
