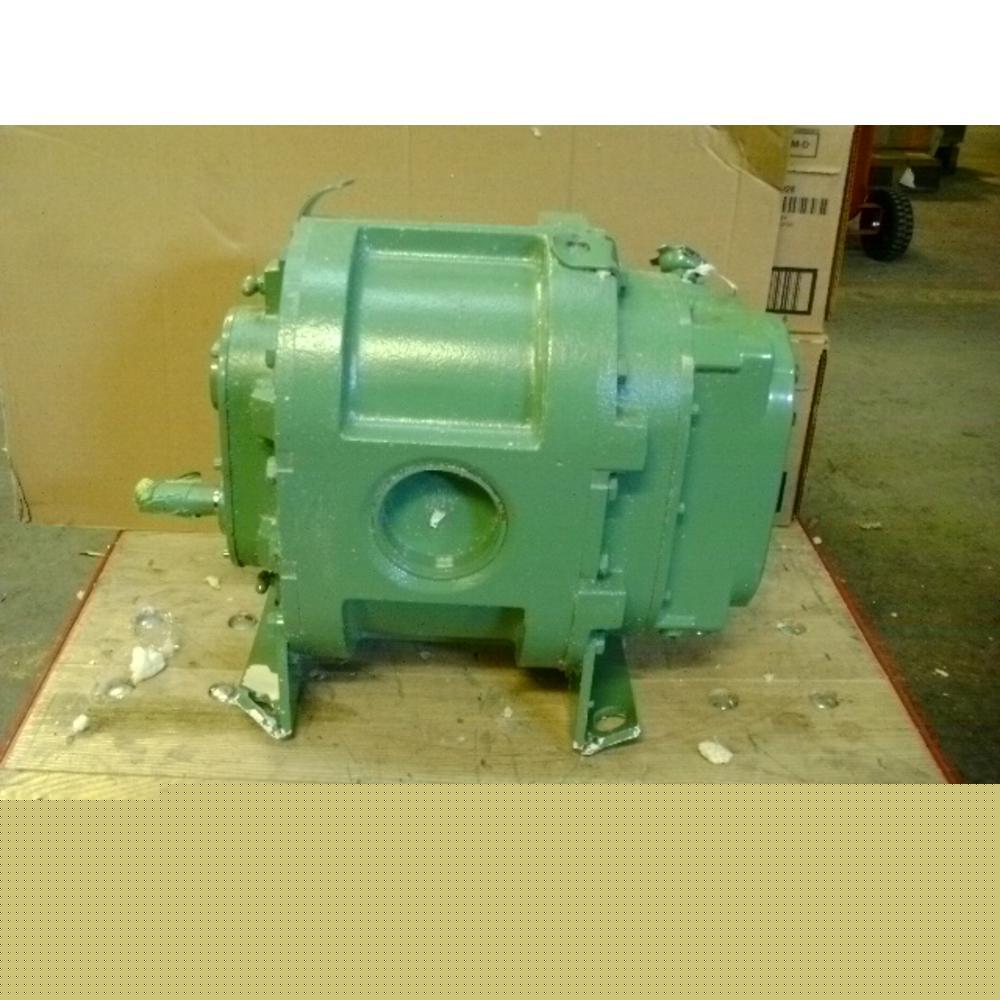

POSITIVE DISPLACEMENT BLOWER/VACCUM PUMP INLET DIAMETER: 2.5", OUTLET DIAMETER: 2.5", DISPLACEMENT: 0.104 CU FT/REV, CFM RANGE: 108-350, RPM RANGE: 1528-3600, MAXIMUM PRESSURE: 7 PSI, MAXIMUM VACUUM: 14 HG, 1.1-12.4 HP REQUIRED, SHAFT LENGTH: 2", SHAFT DIAMETER: 0.75", KEYWAY WIDTH: 0.1875", KEYWAY LENGTH: 1.44", OVERALL WIDTH: 15.06", OVERALL HEIGHT: 12.37", OVERALL DEPTH: 7.75", ISO 9001 STANDARDS, DROP-IN REPLACEMENT FOR VARIOUS ROOTS-TYPE BLOWERS AND VACUUM PUMPS, USED IN VARIOUS INDUSTRIAL APPLICATIONS SUCH AS PNEUMATIC CONVEYING, WASTEWATER TREATMENT, SURFACE CLEANING, AND DAIRY MILKING, WILL HANDLE CONTINUOUS LOADS, ALLOY STEEL TIMING GEARS ASSURE NONSLIP TIMING, HIGH-STRENGTH DRIVE SHAFT PROVIDES GREATER BLOWER DURABILITY AND INSTALLATION FLEXIBILITY, HIGH-STRENGTH CYLINDER WITH HEAT-DISSIPATING FINS FOR REDUCED NOISE AND VIBRATION, HIGH-TEMPERATURE SEALS PROVIDE LEAK-FREE OPERATION IN SEVERE-DUTY APPLICATIONS, BLOWERS CAN BE VERTICAL OR HORIZONTAL CONFIGURATIONS, MOUNTING BRACKETS ARE BENT, DIMS: 12-1/2" H X 16" W X 7-1/2" D, WEIGHT: 95 LBS, COUNTRY OF ORIGIN: USA (Speedaire SA3600V blower/vaccum pump 162334 was posted and is owned by: Trina Barber) |
Tbarber@chicagopartsnetwork.com (Trina Barber) for more information.
