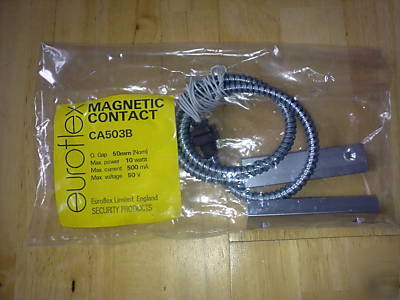

THIS SALE IS FOR THE : MAGNETIC CONTACT - CA503B Please see the table below for spec. Magnetic Contacts - Surface Mounting Aluminium Heavy Duty All types of switches in the CA400 & CA500 series are the same in size and appearance. The CA400 series is available in 30mm & 25mm OP Gap and the CA500 is available in the larger magnet 50mm & 45mm OP Gap. The bracket shown in the picture can be fitted to magnet switch or both. The wiring connections vary as detailed in the table below. Single reed switch, normally open, form A Reed switch held closed by magnet For closed circuit applications Two reed switches, normally open, form A Both reed switches held closed by magnet Maximum current: 500mA each switch Maximum power: 10 Watts each switch Maximum voltage: 50 Volts each switch Single reed switch, normally closed, form B Single reed switch, changeover, form C The switch contacts are reversed (changed over) by application / removal of the magnet (Security door loop magnetic contact - euroflex was posted and is owned by: Lori Bryan) |
