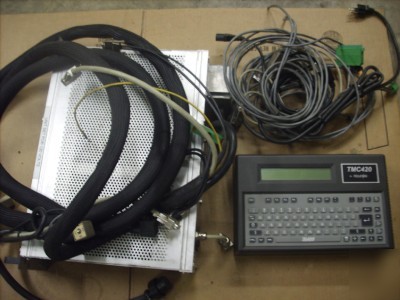

Inficon Electronic Module LDS1000 & Telesis TMC420 Inficon Electronic Rack Module LDS 1000 & Telesis Controller TMC420 Great Condition, Pulled from Working Enviorment Model TMC420, 115/230V 2/1A, 50/60HZ No PC required , Three standard character fonts,Automatic serialization, date coding and shift coding,Four-line LCD display and rugged, sealed keyboard ,User-friendly pattern design software and prompted, interactive data entry,Stores up to 75 marking patterns Extremely compact 12-1/2" W x 8" D x 2.8" H (317 x 203 x 71mm) envelope , 12-24 VDC "Start Print," "Abort,", "Ready" and "Done" I/O signals , Up to 15 different marking patterns remotely selectable via 12-24 VDC discrete inputs, RS232 Host/Scanner Interface to download text to individual fields or call up entire patterns, Up to 31 controllers can be networked to a single host, "Start Print" and "Abort Print" signals from a simple contact closure, Operates on 100-130 VAC or 200-250 VAC, 50-60 Hz power, Flash memory and PC-based software utility provide for software upgrades without Eprom change, Optional PC-based Logo-Font Design Software allows user-defined font or logos to be created in a PC, then downloaded to the TMC420 *Inficon Electronic Rack Module Info: Electronics module prepared for mounting in a 19" rack (3 HU) to offer protection against dust, high temperatures or electromagnetic interference. Serial #90001015483, 115-230V, 50-60HZ, Date 5/2003 (Inficon electronic module LDS1000 & telesis TMC420 was posted and is owned by: Kristen Stephenson) |
k.stephenson@chicagopartsnetwork.com (Kristen Stephenson) for more information.
