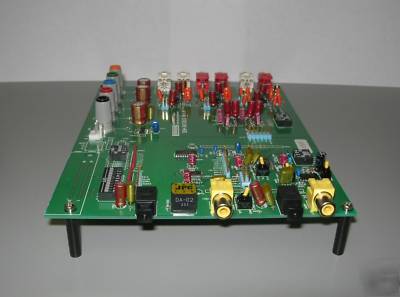

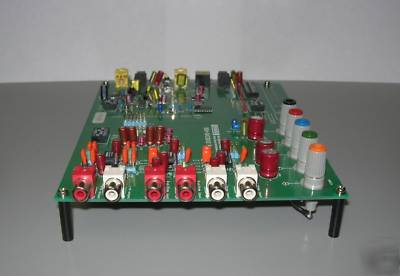

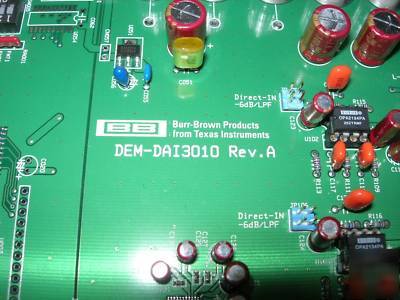

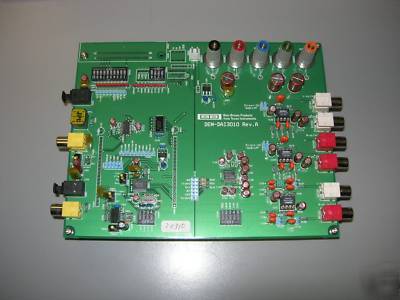

Measures Approx. 8 Long x 6 Wide x 1 High The DEM-DAI3010 is an evaluation board for the PCM3010 (24-bit, 96-kHz ADC and 192-kHz DAC, stereo codec). This board includes not only the PCM3010 but also analog I/O terminals, analog filter circuits, and an S/PDIF digital I/O circuit that is useful for codec evaluation. S/PDIF I/O circuits consist of a 24-bit/96-kHz digital audio interface receiver (DIR1703) and a digital audio interface transmitter (DIT4096), and include optical (TOSLINK) and coaxial S/PDIF digital I/O connectors. Removing shorting plugs from the pins of a header breaks the connection between the S/PDIF I/O circuits and the PCM3010for easier PCM3010 device evaluation. For the User s Guide, please go to the link below http://focus.ti.com.cn/cn/lit/ug/sleu036/sleu036.pdf (Burr brown texas inst. dem-DAI3010 evaluation board was posted and is owned by: Joel Sanders) |
Joel_Sanders@chicagopartsnetwork.com (Joel Sanders) for more information.
