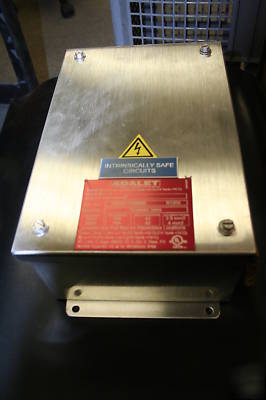

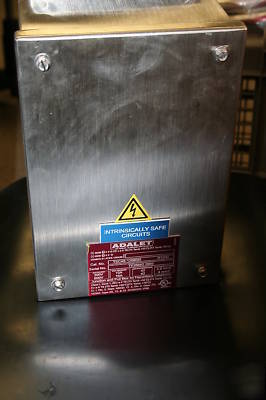

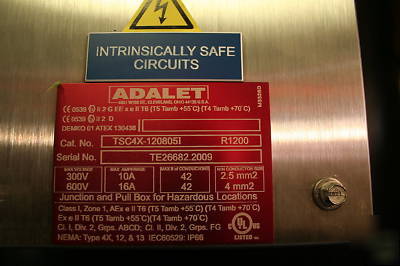

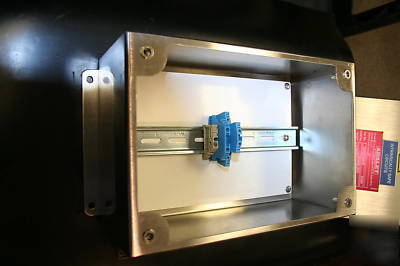

ADALET TSC SERIES - INTRINSICALLY SAFE CIRCUITS - TSC4X-120805I Adalet's Intrinsically Safe Terminal Enclosures are available in (33) standard enclosure sizes of Stainless Steel 316L, Stainless Steel 304, Steel Powder Coated and Fiberglass Reinforced Polyester materials. These enclosures are suitable for areas where ignitable concentrations of flammable gases, vapors, liquids, and dusts can exist under normal operating conditions. Theya re also ideal for indoor and outdoor areas where dampness and highly corrosive atmospheres are present such as refineries, water treatment, food processing, coating, salt, and chemical facilities. -Intrinsically Safe equipment must not be capable of causing ignition of a surrounding explosive atmoshere under specified conditions including: - two countable faults: Category 'ia' - one countable fault: Category 'ib' - Enclosures must provide at least IP20 protection in accordance with EN60529, with higher levels of protection required for certain applications. - Temperatures of wiring and small components must be limited to the specified values according to the T-Class of the equipment. - Components on which intrinsic saftey depends must be of specified rating and construction - Blue is the internationally recognized color for intrinsically safe wiring and terminal blocks. - EEx e II T6 (T5 Tamb + 55 deg. C) (T4 Tamb + 70 deg. C) - Ex e II T6 (T5 Tamb + 55 deg. C) (T4 Tamb + 70 deg. C) - Class I, Zone 1, A Ex e II T6 (T5 Tamb + 55 deg. C) (T4 Tamb + 70 deg. C) - UL50: Type 4, 4X (Stainless Steel Only), 12, & 13 Maximum Working Voltage: 600 Volts Terminal Blocks: EN50019 Certified - Blue Colored (Adalet junction box 12"X8"X5" - SS304 - #TSC4X-120805I was posted and is owned by: Pearl Porter) |
p-porter@chicagopartsnetwork.com (Pearl Porter) for more information.
