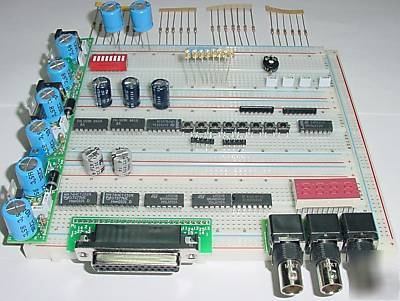

Breadboard Design Proto Kit with Resistors Capacitors LEDs Switchs Analog Digital Breadboard Design Proto Kit w 3 Power Supplies LED DISPLAY 4X7 CLOCK LTC-3710HR RESISTOR SIP 8PIN BUSSED 4308R-101-472 4.7K .1SP 1 COMMON 7 RESISTORS SWITCH PCB PUSHBUTTON VERTICAL TACTLE SPDT MOMENTARY MERITEK DTSG-61K RESISTOR SIP 8 PIN 4 RESISTORS 10K .1SP 4308R-102-103 BOURNES CAP 1000 uF RADIAL 25V 5mm200mil SP ELECTROLYTIC +-20% 13X15MM520mil W ELECTROLYTIC +-20% GREY ILLINOIS CAPACITOR CAP .1uF 63V 5% TH BYPASS SQUARE QUALITY METAL POLYESTER FILM .2 SP .1J63M 85C 39K OHMS 5% 1/4 W R25XT68J393 ROHM 5.1K OHMS 5% 1/4 W R25J5K100 ROHM BREADBOARD SOLDERLESS 830 POINTS 64x5x2 QTY POWER STRIP 4X50 +- POWER SUPPLY BREADBOARD +5V PCB KIT POWER SUPPLY BREADBOARD +12V PCB KIT POWER SUPPLY BREADBOARD +3.3V PCB KIT SCREW TERM & PLUGIN SEMTECH EZ1585CT-3.3 3BNC UNSOLDERED 1X6 .1SP PLUGIN DB25 F BREADBOARD PLUG ASSY W/PINS * Learn to use the ULN2003 Open Collector Driver for high current loads. * Learn to use the LM324 Op Amp, the most commonly used operation amplifier out there. * Learn to use a Mux Chip to multiplex 8 analog lines into 1. * Learn how a very common 4x7 segment LED Display works (clock or counter). * Learn to use pushbutton switches with pull-up resistors. * Learn to use rocker switches with pull-up resistors. * Learn to make timing circuits with capacitors and resistors. * Connect to your scope and function generator. For a Complete Parts List with individual product pictures and links to PDFs, click here. For a Complete Parts List with individual product pictures and links to PDFs, (Brd design proto kit w resistors capacitors leds switch was posted and is owned by: Clarice Stuart) |
