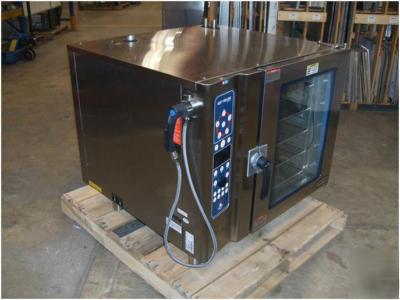

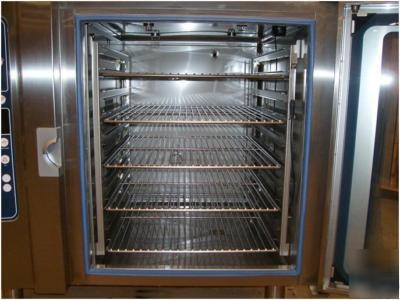

counter-top Model 10 18ES electric CombiOven designed with EcoSmart technology for reduced energy and water usage and include operational modes for steam, convection, and a combination of steam and convection heat. Standard features to include patented automatic steam venting; Gold-n-Brown browning function; and a self-adjusting, flush-mounted rotary door handle with a steam venting safety stop. Control to include 2-speed fan, cool-down function, and automatic decalcification. Oven is to be constructed of 18 gauge stainless steel, include an attached spray hose with backflow preventer, and automatic cleaning function. The oven is to accommodate up to 10 full-size sheet pans or 20 full-size hotel pans, and standard right-hand door hinging. Five (5) stainless steel shelves Ten (10) non-tilt pan support rails (20) FULL-SIZE OR GN 1/1 PANS, (10) FULL-SIZE SHEET OR GN 2/1 PANS SHOWN WITH OPTIONAL MOBILE STAND DUE TO ONGOING PRODUCT IMPROVEMENT, S P ECI F ICAT IONS ARE SUB J ECT TO CHANGE WI THOUT NOT ICE . 10 18ES DIMENSIONS: H x W x D 40-7/16" x 43-7/8" x 42-13/16" (1026mm x 1114mm x 1087mm) 40-7/16" x 47-7/8" x 42-13/16" (1026mm x 1216mm x 1087mm) 30-3/4" x 23-1/2" x 28-7/16" (781mm x 596mm x 722mm) Hood installation is required. Water supply shut-off valve and back-flow preventer. -TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM CLEARANCE FROM COUNTER SURFACE FULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty (20) GN 1/1: 530 x 325 x 65mm Twenty (20) GN 2/1: 650 x 530 x 65mm Ten (10) FULL-SIZE SHEET PANS:* 18" x 26" x 1" Ten (10) at 208 3 60 3 Wire plus ground 61.3/ph 22.0 at 380 3 50 4 Wire plus ground 33.5/ph 22.0 at 440 3* 60 3 Wire plus ground 36.0/ph 27.2 ELECTRICAL SERVICE CHARGE APPLIES a Core Temperature option package. ES Fry Basket BS-26730 Grilling Grate SH-26731 Ventless Hood VHES-10 [5011181] NOT AVAILABLE ON STACKED COMBINATIONS 6 10ES OVER 10 18ES, STATIONARY 6 10ESi OVER 10 18ES, STATIONARY 6 10ESiN OVER 10 18ES, STATIONARY ADDITIONAL MOBILE STACKING BASE 6 CHICKEN CAPACITY FITS FULL-SIZE PAN: 6 RACKS PER OVEN SH-23000 8 CHICKEN CAPACITY FITS FULL-SIZE PAN: 6 RACKS PER OVEN SH-23619 10 CHICKEN CAPACITY FITS IN SIDE RACKS: 6 RACKS PER OVEN SH-22634 STATIONARY WITH SHELF 29-7/16" X 35-7/16" X 28" (746mm x 900mm x 710mm) 5005731 STATIONARY WITH PAN SLIDES & SHELF 29-7/16" X 35-7/16" X 28" (746mm x 900mm x 710mm) 5005732 STATIONARY WITH SHELF & SKIRT 29-7/16" X 35-7/16" X 29-5/8" (746mm x 900mm x 751mm) 5005733 STATIONARY WITH PAN SLIDES, SHELF, & SKIRT 29-7/16" X 35-7/16" X 29-5/8" (746mm x 900mm x 751mm) 5005734 MOBILE WITH SHELF 32-1/16" X 35-7/16" X 28" (815mm x 900mm x 710mm) 5005735 MOBILE WITH PAN SLIDES & SHELF 32-1/16" X 35-7/16" X 28" (815mm x 900mm x 710mm) 5005736 MOBILE WITH SHELF & SKIRT 32-1/16" X 35-7/16" X 29-5/8" (815mm x 900mm x 751mm) 5005737 MOBILE WITH PAN SLIDES, SHELF, & SKIRT 32-1/16" X 35-7/16" X 29-5/8" (815mm x 900mm x 751mm) 5005738 STATIONARY 37-3/4" X 35-7/16" X 28" (957mm x 900mm x 710mm) 5006170 ES #440 - 01/10 W164 N9221 Water Street P.O. Box 450 Menomonee Falls, Wisconsin 53052-0450 U.S.A. (Alto-shaam 10.18ES,dlx, 208/240V was posted and is owned by: Chris Stevens) |
