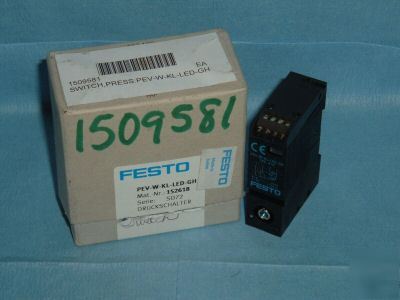

BOSC1509581 Kept in tool crib as spare. Manufacture: Festo Part Number: 152618 Long Part Number: PEV-W-KL-LED-GH Description: Switch; Pressure Assembly position Any Measured variable Relative pressure Measurement method Pneu./elect. pressure transducer Switching element function Changeover switch Threshold setting range 1.5 - 8 bar Operating status display Yellow LED Operating pressure 0 - 8 bar Max. switching frequency 3 Hz Operating voltage range DC 10 - 30 V Max. output current 2,500 mA Operating medium Compressed air, filtered, unlubricated Filtered, lubricated air CE Symbol according to EU-EMV guideline Medium temperature 0 - 60 °C Protection class IP20 Ambient temperature 0 - 60 °C Product weight 56 g Pressure measuring range 2 - 8 bar Electrical connection Screwed terminal 4-pin Mounting type Optional with through hole with top-hat rail Pneumatic connection M5 Materials note Contains PWIS substances Materials information, housing PA PET POM
