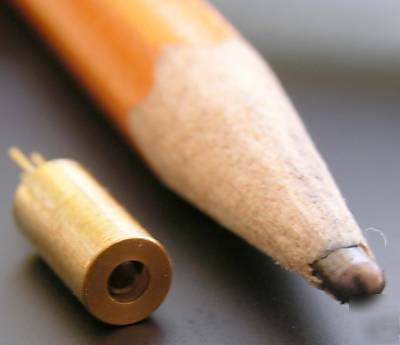

These are NEW, State of the Art Modules * Uses a 3.3 mm diameter diode. We sell those too. * Utilizes a 650 nm, 7 mW laser diode with the APC driver circuit inside the diode package. * No more bulky PCB hanging off the back of the module, or taking up valuable space inside the module. * Only 4 mm in diameter ! Brass Housing If you are working on a small product, this is for you. * Can be modulated at higher frequencies, >10KHz. * Operates on 3 volts DC, but can be driven, and has stable output over a range of 2.5 to 3.3 VDC. * Opeartes with only about 15 mA of current. * 3 mW of laser power output, Class IIIa. Can be factory set for Class I, II,( fast special order) or IIIa (this one) * This is a Negative Case unit (positive case available by fast, special order. Negative Case is shown as "A Heat Sink" version - see data sheet for hook- up. * Available in 635 nm, and soon with glass lens! * Look at this module compared to the size of a #2 pencil! * Please see the data sheet for more details:http:// /html/LMAPCD-650-01.pdf Easy hook- up- just add 3 volts DC and go. Has standard diode pins. They can be soldered with leads, put into standard PCB's, or plugged into 0.1" header type female sockets (PC mother borad type jumper style) See our others APC Diode modules at 6.2 mm, 6.5 mm with plastic housing/ built-in lens, 8 mm, 9 mm, and 10.5 mm diameters. (Laser module 650NM w apc diode 4MM dia driver built- in was posted and is owned by: Toni Cabrera) |
tcabrera@chicagopartsnetwork.com (Toni Cabrera) for more information.
