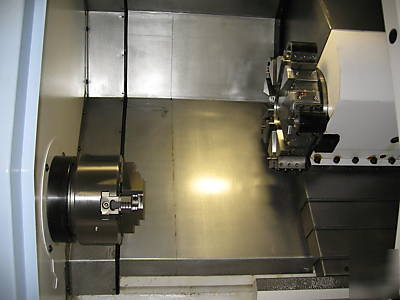

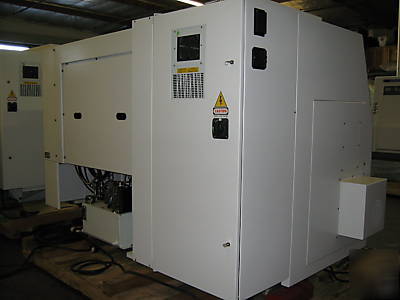

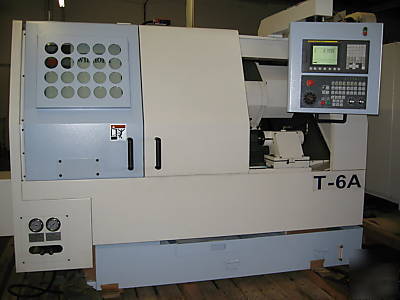

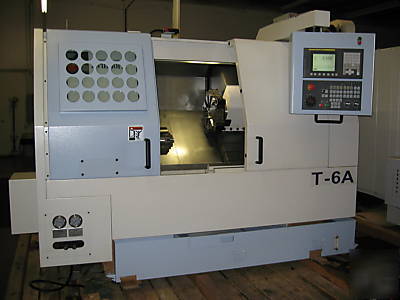

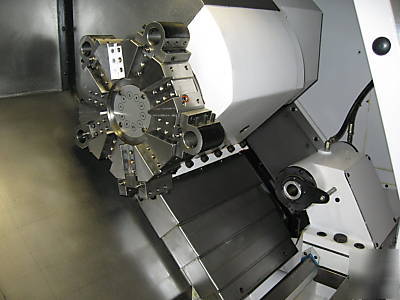

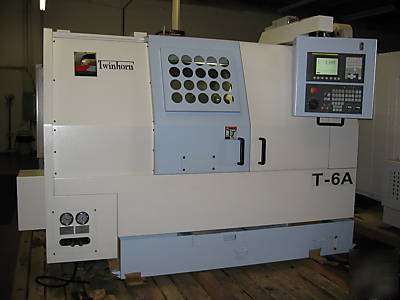

Fanuc Oi-Mate-TC / 320 Meters Memory Fanuc 20 HP Spindle Motor AC Digital Servo & Spindle Drivers 8 3 Jaw Hydraulic Chuck 10 Station Servo Driven Turret Spindle Speed 4800 RPM 5 Set of Boring Bar Holder 1 Set of Turning Tool Holder 5 Set of Taper Block 2 Set of Soft Jaw Meehanite Cast Iron Bed, Base & Headstock Auto Lubrication System Heat Exchanger for Electrical Cabinet Pitch Error Compensation Automatic Power off (M30) RS232 Interface Differential Bed Ways Configuration Tool Kit / Work Light Rapid Feed Rate X Axis - 472ipm Swing Over Bed - 16.54 (420mm) Swing Over Carriage Cover - 12.99 (330mm) Distance Between Centers - 23.6 (600mm) Maximum Turning Diameter x Full Length - 11.81 x 21.65 (300mm x 550mm) Spindle Center Height - 36.22" (920mm) Spindle Motor - FANUC AC Spindle Motor 12 / 7000i Servo Drive Motor X & Z Axis - Fanuc IS 8 / 3000 Turret Tool Disk Diameter - 11 (280mm) Boring Bar Holder Size - 1.25 Turret Index Time (Station to Station) - 0.8 Seconds Tailstock Quill Traverse - 3.94 (100mm) Tailstock Quill Diameter - 2.95 (75mm) Floor Space - 68.90 x118.50 x72.83 (1750mmx3010mmx1850mm) Machine Weight - 8,800 lb (4000 kg) (Twinhorn t-6A cnc lathe with fanuc oi-mate-tc was posted and is owned by: Priscilla Blair) |
priscilla_blair@chicagopartsnetwork.com (Priscilla Blair)
for more information.
