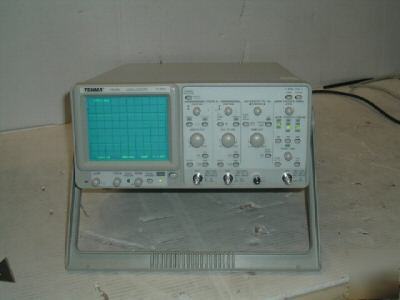

Looks super clean. Powers on. If there are any simple tests you would like me to do, just ask. Link to manufacturer site: http:// /product.asp?catalog%5Fname=MCMProducts&product%5Fid=72%2D6820C&info=details 72-6820 TENMA Tenma 100 MHz Oscilloscope with Cursor Readout. Vertical Bandwidth: DC coupled: DC~100 MHz(-3 dB), AC coupled: 10 Hz~100 MHz(-3 dB), Sensitivity: 2 mV/div~5 V/div, Rise Time: 3.5 nS, Input Impedance: 1 Megohm · Cursor readout with 7 measurement functions (DV, DV%, DdB, DT, 1/DT, DT%, D ) · 10 memory front panel settings save and recall · End of range audiable alarm · Autorange time base function · 6" rectangular CRT with internal graticule · Scale illumination with intensity control · Trace and readout intensity · Display modes: CH-1, CH-2, DUAL, ALT, CHOP, ADD, CH-2 INV oInput coupling: AC/GND/DC · Sweep modes: A, B (delay), ALT, X-Y, X10 magnification · Trigger modes: AUTO, NORM, TV · Trigger sources: CH-1, CH-2, LINE, EXT · Z axis input for intensity modulation · Power requirements: 100V, 120V, 230VAC, 50/60Hz 10mV/div~200V/div (14 divisions) Unable to test further. Sold with 5 day warranty Government * Military * Corporate PO gladly accepted I can be reached M-F 8:30 to 5:00 PST at Beth @ (***)-391-8191 ext 4# Josephine.Livingston@chicagopartsnetwork.com Item must be packed securely & insured. (Tenma 100MHZ oscilloscope 72-6820 was posted and is owned by: Josephine Livingston) |
Josephine.Livingston@chicagopartsnetwork.com (Josephine Livingston) for more information.
