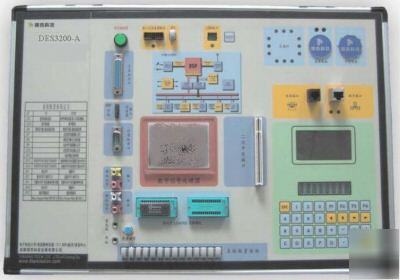

Digital Signal Processing Emulation & Teaching Experiment System An ideal experiment platform, Especially for high school teachers * Integrated XDS510 emulator, work with all DSP experiment without external JTAG emulator; supports C2000, C5000, C6000, VC33 family DSP, complies with CCS 2.0, convenient to debug your own DSP system. * Meet different need by changing DSP daughter-card, including supports C2000, C5000, C6000 family daughter-card * You may study advanced signal processing theory, such as G.723 coding/decoding; MP3 decoding via fixed-point DSP; Convolution coding for wireless baseband communication; Vitebi decoding; Adaptive equalizing, AM modulation, LMS adaptive filtering. * You may accomplish sound signal processing experiment : use TLC320AC01 as AIC circuits, provides one A/D channel and One D/A channel (14 bits) * Reserve 128K words Static RAM, 32K words EPROM to accomplish BOOTLOADER experiments. * External host (PC) may communicate with DSP via HPI interface; access the on-chip memory. BOOTLOADER can also be achieved via HPI interface. * Abundant I/O peripheral, such as LCD, keyboard, traffic LED, LED, UART, etc. * Analog interface such as microphone and speaker interface, general analog input/output interface, phone line interface, etc. * Provide 1 PCI interface for second development including McBSP and extending DATA Bus, Address Bus and Control Bus, reserve status indicator and setting buttons. * Provide 10M/100M adaptive LAN card to accomplish LAN interface experiments. * Provide USB interface to accomplish USB data transform experiments * Provide telephone interface to accomplish telephone signal processing experiments. * Provides DC motor, step motor driver circuits, allow you to do motor driving experiment. * Applicable at study, scientific research, experimentation, product development, etc. DES3200 series DSP Teaching Experiment System are available in 3 model of A, B, C DES3200 series DSP Teaching Experiment System support C5000, C2000, C6000, C55 daughter cart LPT Cable, SP Cable, DC Power Supply, CD-ROM, User's Guide, Instrution The introduction of available experiments Fixed-point integer add/sub/mpy/div Fixed-point fraction add/sub/mpy/div Type B: Digital signal processing Type C: Digital signal processor operation PC accesses the on-chip memory via HPI. 16 bits external ROM Bootloader Type D: Advanced debug tool DSP/BIOS The develop flow under DSP/BIOS The setup of DSP/BIOS config file CAN but experiment ( for C2000 ) Type F: Hardware extending experiment Use extending Bus, design your own hardware system Use integrated emulator, debug your own target DSP system You must have a return authorization number to return your product. Please contact s.gilliam@chicagopartsnetwork.com to obtain an authorization number, which shall be valid for 14 days after issued. This product is covered by a warranty of 12 months. You must have a return authorization number to service your product. Please contact s.gilliam@chicagopartsnetwork.com to obtain an authorization number. (Dsp experiment system 3200A was posted and is owned by: Sandra Gilliam) |
s.gilliam@chicagopartsnetwork.com (Sandra Gilliam) for more information.
