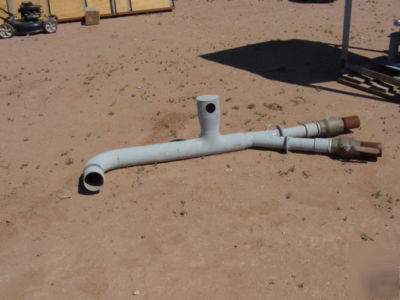

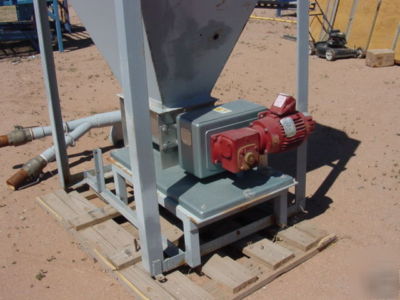

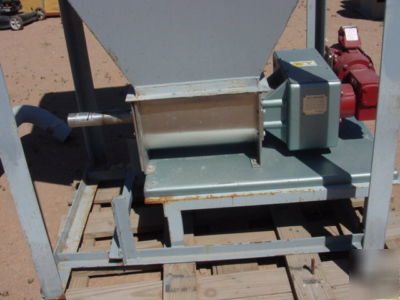

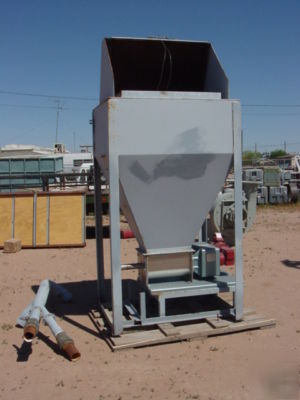

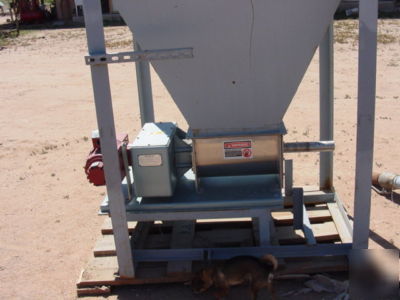

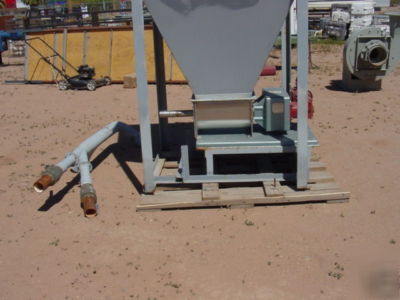

THIS IS A BAG DUMP HOPPER THAT WAS BUILT TO FEED HARD TO FLOW MATERIALS. IT IS FORMED FROM 3/16 MILD STEEL. . DIMENSIONS OF THE HOPPER ARE 48 WIDE X 40 DEEP X 54 IN HEIGHT. THE DISCHARGE ANGLES ARE 68 DEGREE AND 72 DEGREE. IT IS EQUIPPED WITH AN INTERNAL GRATE TO SET BAGS ON WHILE CUTTING AND DUMPING. IT HAS A HINGED COVER WITH DRIP LIP TO CLOSE HOPPER FROM MOISTURE. IT HAS A 25 IN HEIGHT DUST HOOD FOR DUST CONTROL FORMED FROM 3/16 MATERIALS. THE TOTAL COMBINED HEIGHT IS 105 . THE DISCHARGE FEEDER IS AN ACRISON MODEL 105Z VOLUMETRIC FEEDER WITH INTEGRAL HOPPER. THE FEEDER HAS A STAINLESS HOPPER AND FEED SCREW. THE DUMP HOPPER AND ACRISON FEEDER HAVE LESS THAN 100 HOURS OF OPERATION IT WAS USED AS A TEST SYSTEM. INCLUDED IS A DISCHARGE MANIFOLD TO FEED 2 SOURCES. (Bag dump station with acrison feeder. was posted and is owned by: Bernadette Holt) |
