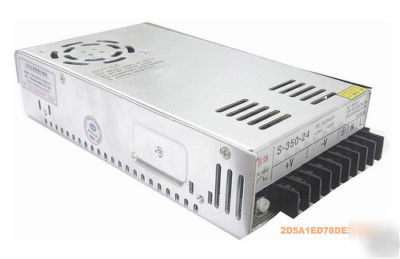

* AC input range selectable by switch * Protections: Short circuit/ Overload * Cooling by free air convection * 100% full load burn-in test * Low cost, high reliability * AC input voltage range ......... 90-132VAC / 180-264VAC selectable by switch * AC inrush current ................. Cold start, 25A at 115VAC, 50A at 230VAC * DC adjustment range ............ 10% rated output voltage * Overload protection .............. 105%-135% hiccup mode, auto-recovery * Setup, rise, hold up time ....... 200ms, 50ms, 20ms at full load and 230VAC * Withstand voltage ................. I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, 1 minute * Working temperature ............ -10~60oC (refer to output derating curve) * Safety standards .................. Design refer to UL1950 * EMC standards .................... Design refer to EN 55022:1998, EN 61000-3-21-3 EN55024:1998 (EN 61000-4-21-31-41-51-61-11) * Connection .......................... 9P/ 9.5mm pitch terminal block * Packing ............................... 1.07kg Please ignore S-350-24 in the image. The real product is S-400-24 Thank you for your patience and understanding in this matter. Our email address is concepcion-morales@chicagopartsnetwork.com. If you have any questions, please send email to us. Click here to find my other items! (24V dc 16A 400W switching power supply s-400-24 was posted and is owned by: Concepcion Morales) |
concepcion-morales@chicagopartsnetwork.com (Concepcion Morales) for more information.
