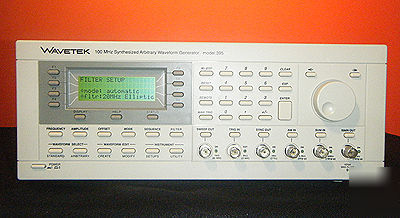

100 MS/s Arbitrary Waveform Generator with Option 001 (IEEE-488/Direct DSO WF Transfer) * Functions (frequency range): sine (1 Hz to 40 MHz), square (1 Hz to 50 MHz), triangle (1 Hz to 10 MHz), negative & positive ramps (1 Hz to 2 MHz), pulse, pulse trains, dc, negative & positive haversine (1 Hz to 40 MHz) * Arbitrary waveform range: 100 mS/s to 100 MS/s * Arbitrary waveform resolution: 4 digits * Arbitrary waveform accuracy: 100 ppm * Arbitrary waveform memory size: 64 k points * Pulse waveform range (periods <655 s): 100 ns to 655 s * Pulse waveform resolution (periods <655 s): 20 ns * Pulse waveform accuracy (periods <655 s): 100 ppm * Pulse waveform range (periods >655 s): 655 s to 10 s * Pulse waveform resolution (periods >655 s): 4 digits * Pulse waveform accuracy (periods >655 s): 100 ppm * Output amplitude: 10 mVpp to 10 Vpp into 50 ohms * Output resolution: 3.0 digits * DC Offset: 5.0 V into 50 ohms * RS-232 (standard); GPIB (IEEE-488) interface (option 001) * Input/Output connectors: BNC(f) * 90-132/198-252 Vac; 48-440 Hz operation All Items are sold with a 7 Day Unconditional Right of Return, and 15 Day Guarantee from receipt of delivery. All sales are FOB Ocean N.J. All items are expertly packed. To view our Complete 20.000 item Inventory visit us @ www. Tech-Systems.net (Wavetek 395-001 arbitrary waveform generator (reduced ) was posted and is owned by: Clarice Phillips) |
c_phillips@chicagopartsnetwork.com (Clarice Phillips) for more information.
