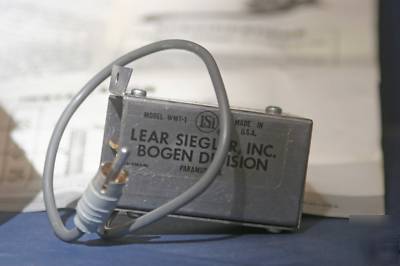

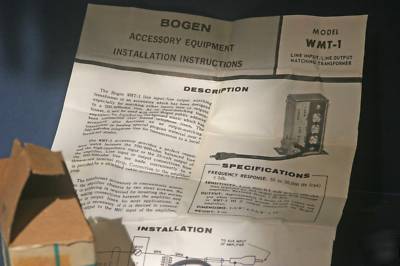

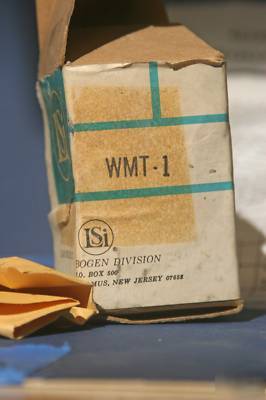

You are purchasing one NOS Bogen Line Input / Line Output matching transformer, in its original box. This is an accessory for the C10B and C20B Bogen PA amplifiers. It provides an impedance match between the amp and 0 level/500/600 ohm line, and can be used when using the PA amps as music amps. Frequency response 50 to 20,000 Hz (cps) +/- 2 db. Sensitivity: Less than 0.1 volt across 600 ohm line required for full output power from average amplifier. Maximum level + 20 dbm. Output: Approximately 0 level (1.73 volts) output when connected across 25 volt output tap or WMT-1 HI Z output connection on Bogen amplifier. Dimensions: 1 3/8 inch x 2 3/8 inch x 1 1/4 inch Includes mounting hardware and full installation instructions and wiring diagrams. Let us know if you have any questions. We also a a great selection of NOS parts, used parts, NOS Tubes, Used tubes and vinyl records. (Nos wmt-1TRANSFORMER for bogen C10B C20B pa amplifiers was posted and is owned by: Mary Holt) |
