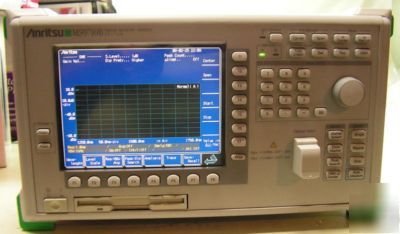

The MS9710B provides excellent wavelength accuracy and waveform shape. This diffraction grating OSA features improved wavelength accuracy, resolution bandwidth, and signal-to-noise averaging, covering a wide wavelength range from 600 to 1750 nm. The MS9710B features high power level accuracy, wide dynamic range, and high reception sensitivity. * Improved signal-to-noise measurement with left and right noise floor averaging * Tracking function with tunable laser source * Built-in attenuator for high power optical input * Optional built-in light source and reference wavelength * C Band Up to 100 GHz channel spacing * Measurement Range 1600-1750nm * I accuracy is50pm (1530-1570nm) * RBW accuracy (.2nm) <3% (1530-1570nm) * Level flatness +/-0.1dB (1530-1570nm) * Level linearity +/- 0.05dB (C-band) The MS9710B can measure wavelength, power level and SNR for up to 300 DWDM channels. It can also be used for PMD and EDFA noise floor measurements Tunable Laser Source Tracking This internal function eliminates the need for an external controller to make measurements using an Anritsu TLS. Internal Light Sources Optional SLD, white light, and reference wavelength light sources can be installed in the MS9710B to simplify measurements. Calibration with the built-in reference source is a one-button operation. (Anritsu MS9710B spectrum analyzer osa was posted and is owned by: Alissa Hancock) |
alissahancock@chicagopartsnetwork.com (Alissa Hancock) for more information.
