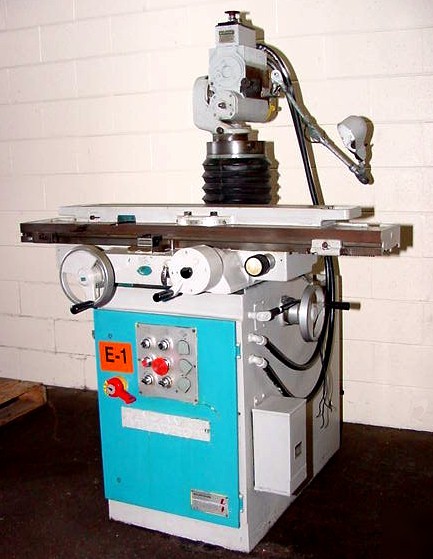

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Ovens, Furnaces & Environmental 1978 CINCINNATI MILACRON #2 TOOL & CUTTER GRINDER 1978 CINCINNATI MILACRON #2 TOOL & CUTTER GRINDER UNIVERSAL TOOL & CUTTER GRINDER MODEL: MT S/N: 4490E78-06-19 NEW: 1978 SWING OVER TABLE DIAMETER ....................... 10" LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27" LENGTH, BETWEEN TAILSTOCK & WORKHEAD ........ 21-1/2" FACE MILLS ON WORKHEAD DIAMETER ................. 10" FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. 18" SAWS ON TABLE DIAMETER .......................... 48" FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........ 10" TABLE SIZE ................................. 6" X 36" LONGITUDINAL TABLE TRAVEL ....................... 16" CROSS MOVEMENT OF TABLE ......................... 10" TABLE SWIVEL ............................... 180 DEG. TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ..... 5" FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .. 2" TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 90 DEG. VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE . 10-1/2" MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ... 13-1/2" SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG. SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG. 6" WHEEL, SURFACE SPEED 6,022 FT./MIN. .... 3,834 RPM 3" WHEEL, SURFACE SPEED 5,887 FT./MIN. .... 6,425 RPM APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS APPROXIMATE DIMENSIONS ................ 3' X 38"D X 5'H TILTING WHEELHEAD (15 DEG. ABOVE & BELOW) DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE BALL BEARING ANTI-FRICTION TABLE ROLLING IN REPLACEABLE HARDENED STEEL V-WAYS 360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH CAN INCREASE SPECIFIED CROSS RANGE BY 70% 2-SPEED SPINDLE, INSTANTLY REVERSIBLE 1 HP 3/60/230-460 VOLT SPINDLE MOTOR PRESENTLY WIRED FOR 3/60/460 VOLTS CINCINNATI-MILACRON WORKHEAD WITH 24 POSITION INDEX PLATE ...... WORKHEAD HAS #5 MT & #50 NST TAPERS ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE ** ** EXCELLENT CONDITION & APPEARANCE ** Machine Location: HARRISON, NJ Click Here For More Cincinnati-Milacron Machines Click Here For More Grinders, Lappers & Hones - TOOL & CUTTER GRINDERS(s) Call Andy at (***) 873-6224 ext 7600 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. Summary of My Selling Policies Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (New Jersey). A sales tax exemption certificate may be required if you are a New Jersey company. Equipment purchased for personal use is subject to sales tax if you are a New Jersey resident. Read my policies on my summary (1978 cincinnati milacron #2 tool & cutter grinder was posted and is owned by: Gay Boone) |
g_boone@chicagopartsnetwork.com (Gay Boone) for more information.
