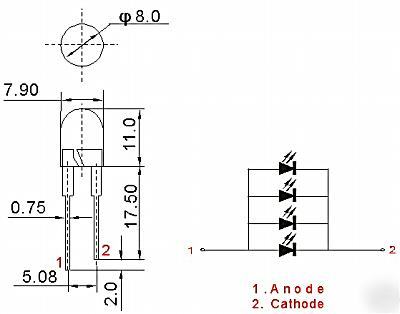

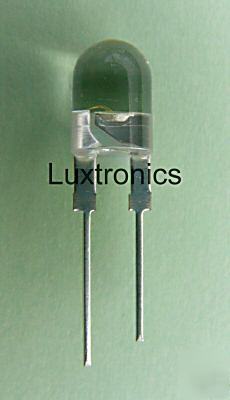

10 x 8MM white 4-chip led 16 lumens @80MA 0.3W power


10 x 8MM white 4-chip led 16 lumens @80MA 0.3W power
* Luminous Intensity: 16 Lumens @80mA
* Multi-chip LED technology - 4 chips integrated in one package
* Forward voltage 3.0V typical
* Xeon white colour: X = 0.29, Y = 0.3
* Max. power dissipation 300mW
* Max. peak forward current 100mA (1/10 duty cycle, 10 ms pulse width)
* Max. continuous forward current 80mA
* Operating temperature -25 to 80 C
* Storage temperature -40 to 100 C
* Soldering temperature 260 C for 5 seconds
