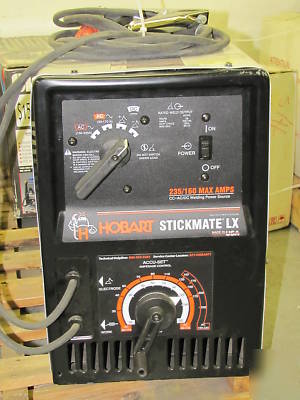

HOBART STICKMATE LX 235AC/160DC **FLOOR DISPLAY MODEL * 15 ft. (4.6 m) electrode cable with heavy-duty holder * 5 ft. (1.5 m) primary cable with plug * Accu-Set amperage indicator for accurately controlling amperage or heat output * Infinite current control allows the operator to adjust output by as little as 1-amp increments * Output selector switch to quickly select low or high range without adjusting the output leads * High 100% duty cycle rating (100 amps AC / 65 amps DC) * Fully varnished magnetic coils for enhanced coil reliability and life * Forced-draft cooling fan runs continuously and helps to extend the life of the power source AC: 225 A at 20% Duty Cycle, 60 Hz 225 A at 15% Duty Cycle, 50 Hz DC: 150 A at 20% Duty Cycle, 60 Hz 150 A at 15% Duty Cycle, 50 Hz Max. Open-Circuit Voltage AC/DC Amps Input at Rated Output, 60 Hz (Hobart stickmate lx 235AC/160DC **floor display was posted and is owned by: Flossie Chandler) |
flossie-chandler@chicagopartsnetwork.com (Flossie Chandler) for more information.
