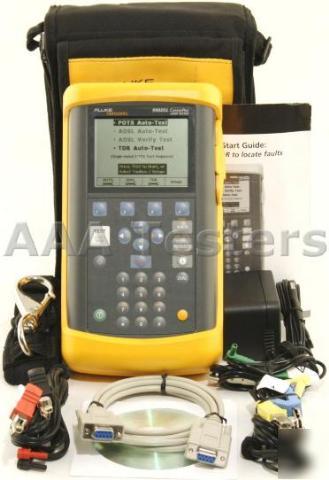

* Fluke 990DSL CopperPro Loop Tester * Quick Start Guide: Using TDR Fluke Networks 990DSL CopperPro Loop Tester With WIdeBand, TDR & NSA Options Enabled Carrying Case & Full Accessories Included! In its basic configuration, CopperPro offers a broad range of Plain Old Telephone Services (POTS) troubleshooting, fault location and line qualification capabilities. Its Wideband/TDR option adds high frequency transmission testing and qualification functions for services like ADSL, HDSL, HDSL2, HDSL4, ISDN, T1, E1 and DDS. And the TDR feature of the option adds precise fault location and analysis. The Wideband/TDR option can be added at time of purchase or later at an authorized service center. * Replaces up to sixteen traditional test sets * Troubleshoots and qualifies lines for POTS, ADSL and other special services * Time Domain Reflectometer (TDR) feature allows precision fault location * Fast, accurate and easy to use * Compact, rugged and weather resistant Scalable technology that protects your investment CopperPro's basic configuration is designed for POTS applications including voltage, opens, shorts, balance, RFL, VF noise and loss, terminated and dial-up tests, as well as load coil detection and line monitoring. The Wideband/TDR option delivers accurate fault location capability in a handheld test set. With it, you can test and compare pairs, store measurements and test for crosstalk between pairs. Versatility with standalone or automation operation You can identify, locate and repair line faults and qualify loop performance - all at the push of a button. And CopperPro can capture the test results for complete documentation. CopperPro combines a toolbox approach with programmable Auto-Tests that make testing fast and easy. Results are displayed graphically on its large, bitmapped display that's easy for users to view in all light conditions. In addition, integrated tests combine functions to help the user understand what' causing the problem as well as pinpoint the location. The result? Better and faster service. Higher productivity - and profitability. As a standalone tool, CopperPro's handheld design makes it easy to carry and operate wherever testing takes you. CopperPro is easily automated for even greater testing speed and consistency - with documented test results. Powerful Software enables sixteen test sets in one You can identify and locate common physical cable faults like shorts, crosses, opens, splits, pair imbalances caused by bad splices and corroded metallic faults on unused pairs. CopperPro also makes it easy to find the root causes of transmission problems, like excessive noise or signal loss, and helps locate and identify loop treatment devices like range extenders, network interface devices and maintenance termination units. And, CopperPro makes fast work of qualification for both POTS like Caller ID, ANI and dial up modems, as well as digital broadband services like ADSL (DMT and CAP), T1, E1, DDS, ISDN, HDSL and HDSL2. That includes noise, loss and crosstalk measurements, predicted data rates, and location of impairments like load coils or bridge taps. CopperPro offers the following sixteen test set capabilities: 1. Digital Multimeter (AC/DC Voltage, Resistance) 4. Noise Meter (VF and WB, Gaussian and Impulse) 10. VF and WB Precision Signal Generator 13. ADSL Connectivity Tester 14. ADSL and Special Services Pair Qualification Set 15. VF and WB Longitudinal Balance Meter Ease of Use - do more faster and with less training Results are displayed graphically on its large, bitmapped display that's easy for you to view in all light conditions. In addition, integrated tests combine functions to help you understand what's causing the problem as well as pinpoint the location. Size: 9.8"H x 5.3"W x 3.2"D (24.9cm x 13.5cm x 8.1cm) Weight: 4 lbs (1.81 kg) Display: 320 x 240 pixel graphic LCD with backlight and adjustable contrast LED Indicator: Charging status indicator (side connector panel) Communication Port: RS-232 PC/Printer port (DB-9) AC Operation: External AC adapter/charger Battery Type (installed): Internal removable NiMH rechargeable battery pack Battery Life: A fully charged battery provides approximately 16 hours of normal use Battery Recharge Time (in tester): 2 to 3 hours for a fully discharged battery pack Operating Temperature: -4 to 140 F (-20 to 60 C) Storage Temperature: -40 to 158 F (-40 to 70 C) Humidity Tolerance (operation without condensation): 95% Rain Resistance: IEC60529 IP02, International protection water dripping Vibration: Random, 2 g, 5 Hz to 500 Hz CE: EN 61326 Emissions and Immunity CLASS A; EN 61010-1 2nd ammendment 0 to 250V (1% 0.5V accuracy) DC Voltage (RIN=100 kohms or 10 Mohms) Range: 0 to 150V (1% 0.5V accuracy); 150 to 300V (2% accuracy) 0 to 100 mA (2% 0.3 mA accuracy) 0 to 100 ohms (0.1% 0.10 ohm accuracy) 100 ohms to 1000 kohms (0.2% 0.10 ohm accuracy) 4 kohms to 999 Mohms (3% accuracy) 2 kohms to 999 Mohms (3% accuracy) 0 to 3000 ft (1% 5 ft accuracy) Range: 0 to 50 kft (Accuracy: 10% of Cable Length) Fault Resistance (Rf): 0 to 30 Mohms Loop Resistance: 0 to 4000 ohms Resistance to Fault (@ Rf = 100 kohms): 0 to 100 ohms (0.1% RTS 0.10 ohm); 100 ohms to 4 kohm (0.3% RTS 0.10 ohm) Frequency: 577.5 Hz (0.1% accuracy) Range: > 15Vp-p (10% accuracy) Impedance: 600 ohms, Bridged (1% accuracy) Filters: C, CN, 3k, 15k, Psophometric Metallic Noise: 0 to 10 dBrn ( 2 dB accuracy); 10 to 100 dBrn ( 1 dB accuracy) Power Influence: 40 to 120 dBrn ( 2 dB accuracy) Signal Level: -40 to 10 dBm ( 0.5 dBm accuracy) Frequency: 100 Hz to 20 kHz (0.1% 2 Hz accuracy) VF Longitudinal Balance (0 to 70 dB 2 dB) Disturbing Frequency: 200 to 2500 Hz (0.1% accuracy) Impedance: 600 ohms (1% accuracy) Frequency: 100 Hz to 20 kHz (0.1% accuracy) Amplitude (settable) Range: -20 to 3 dBm Amplitude Accuracy: 0.5 dB (1 dB increments) Impedance: 600 ohms, 900 ohms (1% accuracy) Impedance Range: 100 ohms, 135 ohms, Bridged (1% accuracy) Frequency: 10 kHz to 1200 kHz (0.1% 508 Hz accuracy) Amplitude: -50 to 3 dBm ( 1 dB @ 135 ohms); -90 to -50 dBm ( 3 dB @ 135 ohms) Impedance: 135 ohms (1% accuracy) Magnitude: 0 to 50 dB ( 1 dB accuracy); 50 to 70 dB ( 2 dB accuracy) WB Longitudinal Balance (0 to 70 dB; 2 dB) Disturbing Frequency: 10 to 1200 kHz (0.1% accuracy) Impedance: 100 ohms, 135 ohms (1% accuracy) Amplitude (fixed): 0.0 dBm ( 0.5 dB accuracy) Test Time: 1 to 1440 Minutes (1% accuracy) Counter Threshold: -50 to 0 dBm ( 1 dB accuracy) Impedance: 100 ohms Noise Filters: E, F, G, None ADSL Standard: ANSI, Full, G, Lite Resolution: 32 kb/s Downstream Rate Downstream Rate Accuracy: 96 kb/s (3 units of resolution) 20, 100, 500, 1000, 2500, 5000 ns (10% 5 ns accuracy) 0.5 to 156 ft (0.1524 to 47.5m) Range: 0 to 30,000 ft (0 to 9144m) Accuracy: 1% Vop Uncertainty (Fluke networks 990DSL copperpro tester 990 dsl wbtdr was posted and is owned by: Mariana Ferrell) |
