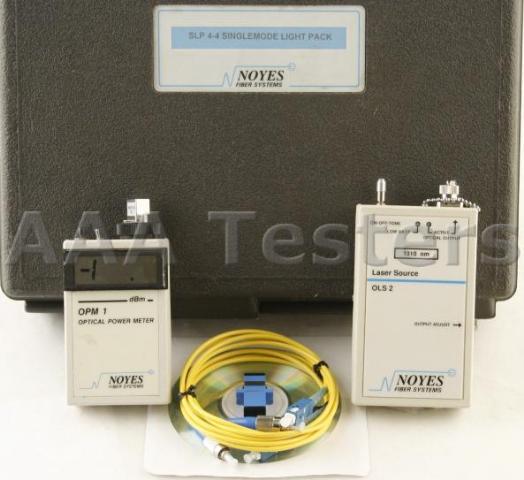

* Noyes OPM 1-2 Optical Power Meter (850nm, 1310nm, 1550nm) * Noyes OLS2 Stabilized Laser Source (1310nm) NOYES SLP 4-4 Singlemode Light Pack NOYES OPM 1-2 850nm 1310nm 1550nm Optical Power Meter NOYES OLS2 1310nm Stabilized Laser Source The OLS2 laser source is a cost-effective, rugged, handheld instrument designed for performing insertion loss measurements on single-mode fi ber optic links when used with an optical power meter. When paired with an optical fi ber identifi er, the OLS2 may be used for fi ber identifi cation. The LASER output is stabilized to ensure accurate test results per current TIA/EIA requirements. Two versions of the OLS2 are available for measurements at 1310 nm, 1550 nm. This light source offers 2 modes of operation: continuous wave (CW) and 2 kHz modulated Tone. [Laser Active], [Battery], and [External Power] indicators identify the enabled laser, battery charge status, and external power presence. The output port is equipped with FC, SC, or ST style connector. The OLS2 laser sources operate on disposable batteries or AC adapter. The OLS2 is fully N.I.S.T. traceable. * Certify single-mode links per TIA/EIA standards * CW or 2 kHz modulated Tone * Cost-effective, easy to use Class 1 (FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1) 5 nm (max), 1625 nm: 5 nm (typ) 0.1 dB over 1 hour (after 20 min. warm-up) 0.15 dB over 8 hours (after 20 min. warm-up) Typical 40 hours with 9V battery, optional AC adapter (Afl noyes slp 4-4 sm light pack opm 1-2 OLS2 ols was posted and is owned by: Mercedes Kirby) |
