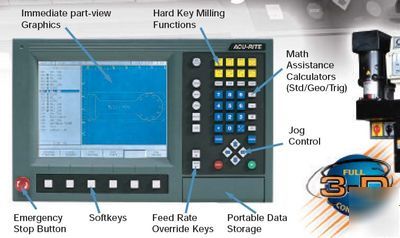

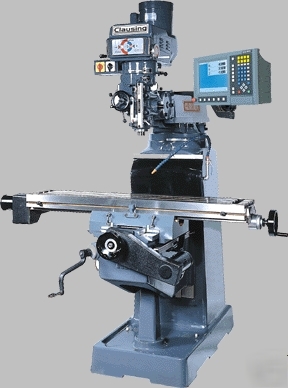

New Clausing Model 3VSCNC Mill with Acu-Rite Millpwr 3 Axis CNC Controls Travels: 33" X, 15.5" Y, 17.7" Knee & 5" Quill Z 10" x 57" Table with Three .63" wide T-slots Two Range Spindle Speeds: 60-500 rpm Low Range, 550-4300 High Range Meehanite Castings for Superior Rigidity Hardened & Ground Ways, Spindle and Table Surface Infinitely Variable Spindle Speeds (60-4300 rpm) Ground T-slots to provide reference edge for positioning workpiece Hardened & Ground Table Surface Ground Ball Screws & Chromed Motor Shaft Coolant System w/Pump & Switch Chromed Cross Feed Screw Covers and One-piece Wiper Flexible Segmented Coolant Nozzle Articulating Head for Compound Angles Worm gear angular positioning of head in two directions Lever-operated manual rapid quill movement Adjustable automatic feed disengagement for quill feed in both directions Reversing switch for clockwise or counter clockwise operation Spindle Brake (Hand operated) Mini Electrical Box for Coolant and Mains Tool Kit, Test and Accuracy Chart Operations Manual/Parts List User-friendly CNC Control with Color LCD Display and Menu-Prompted Conversational Programming 3 Axes CNC Control/3 Axes Digital Readout for manual operation 10" Flat Panel, Color, LCD Display Tool Library Teach Position Acu-Rite Precision Glass Scales for Superior Accuracy & Repeatability with (1 m/.0001" Resolution Hard Key Milling Functions, Select routine functions (lines, arcs, rectangles, circles, etc.) Overview: The affordable 2 axis CNC Vertical Mill with features found on higher priced Machines... * X and Y Axis CNC Operation Saddle/Table Bearing Length (in.) Ram/Turret Bearing Length (in.) Specifications subject to change without notice (New clausing 3VSCNC mill with acu-rite 3 axis controls was posted and is owned by: Leanne Frederick) |
L-Frederick@chicagopartsnetwork.com (Leanne Frederick) for more information.
