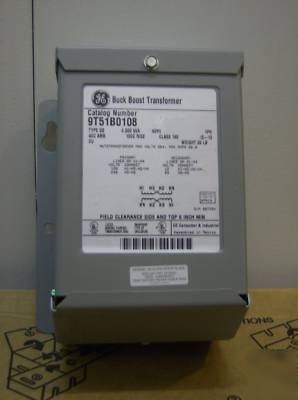

This is a new GE encapsulated buck/boost transformer. It was purchased for a planned application in a factory, but never installed and never used. * Efficient insulating materials permit compact size and light weight * Dual voltage primary and dual voltage secondary for maximum versatility * Large, front-accessible wiring compartment permits fast, easy wiring * Convenient conduit knockouts located on side, bottom and back of wiring compartment * GE Buck-Boost Transformer Selector makes selection fast and easy * Many GE buck-boost transformers fit competitor mounting footprints * Convenient method of matching line voltage with equipment voltage * Ability to handle loads up to 20 times nameplate rating when connected as an autotransformer * Ideal for changing line voltages by small amounts * Qualified to the seismic requirements of IEEE-693-1997 and IBC-2003 * International voltage adaptation * Commercial and industrial air conditioning * Voltage line drop correction * Primary/input voltage: 120/240V, 60Hz * Secondary/output voltage: 12/24V * Dimensions: 8.38"(h) x 6.88"(w) x 4.88"(d) General-purpose transformers are rated 600 Volts and below for supplying appliance, lighting, and power loads from electrical distribution systems. Standard distribution voltages are 600, 480, and 240 Volts; standard load voltages are 480, 240, 208, and 120 Volts. The transformer is used to obtain the load voltage from the distribution voltage. Since no vaults are required for installation, these transformers can be located right at the load to provide the correct voltage for the application. This eliminates the need for long, costly, low-voltage feeders. Core and coils are contained within a NEMA 3R nonventilated weatherproof enclosure. Type QB and QMS units feature Transformer taps compensate for high or low line voltages. Standard NEMA, ANSI three-phase taps are two 5 percent taps below normal on transformers smaller than 30 kVA. This arrangement provides a 10 percent range of tap voltage adjustment. (Ge buck boost transformer 9T51B0110 was posted and is owned by: Lance Shelton) |
Lance_shelton@chicagopartsnetwork.com (Lance Shelton) for more information.
